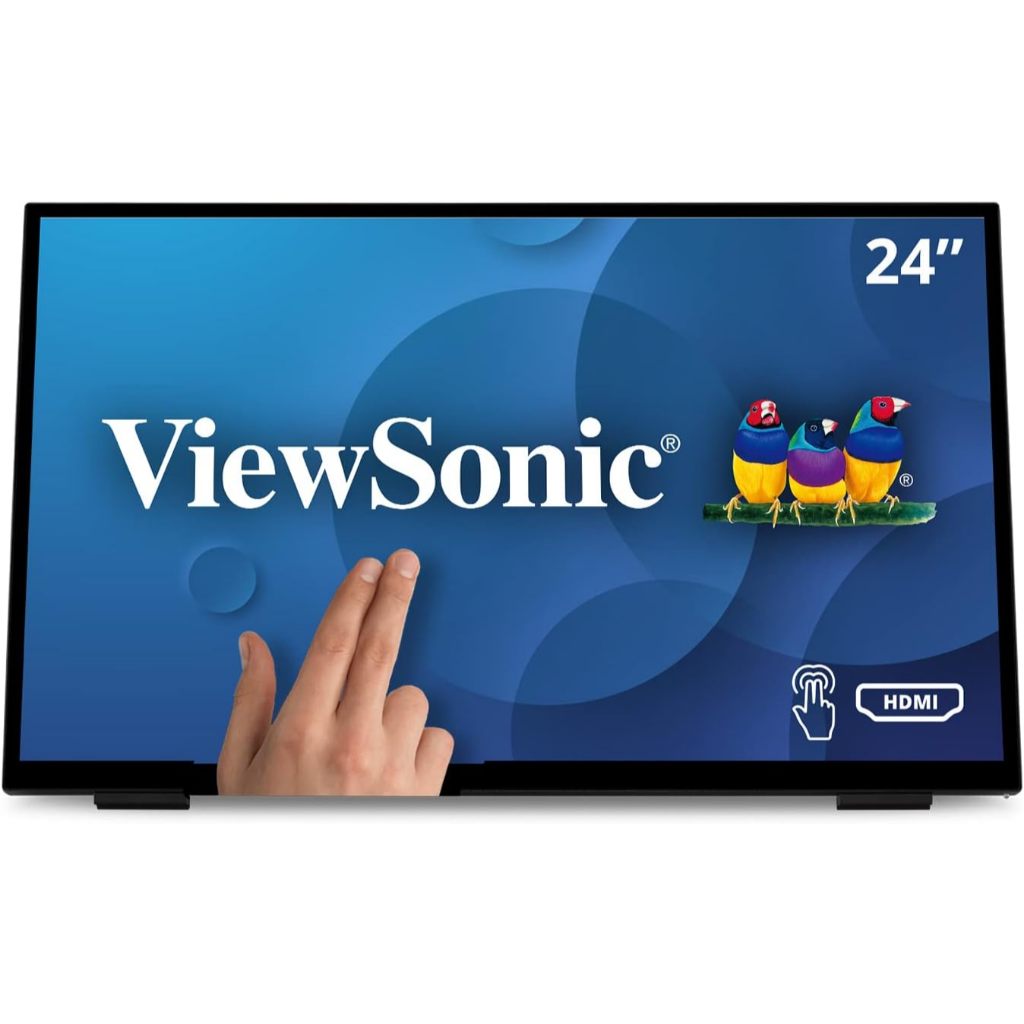

TD2465
24” Frameless Touch Monitor with 10 Points PCAP
Touch function for wet hands and multiple types of glove
Pen clicks & Palm rejection technology
4-sides frameless design and optional stand for flexibility
Friendly touch mode setting
Intuitive touch OSD with ViewSonic Touch Controller
SPECIFICATIONS
Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 4,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 7ms
Response Time (GTG w/OD): 6.969ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 100
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 86% size (Typ)
sRGB: 122% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.2mm
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 20W
Eco Mode (optimized): 22W
Consumption (typical): 24W
Consumption (max): 26W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Wall Mount
VESA Compatible: 100 x 100 mm
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS
PACKAGE CONTENTS: TD2465 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
