pl 2303 pl 2303 hx usb to uart ttl โมดูล ตัวแปลงสายเคเบิ้ล 4 p 4 pin rs 232 1 ชิ้น

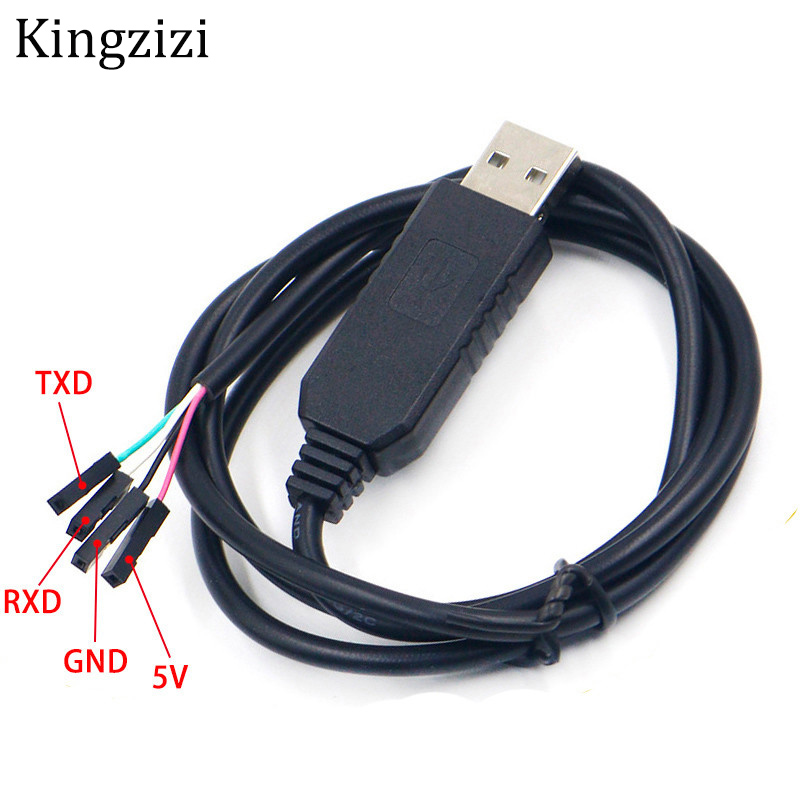

Welcome to our shop Kingzizi , all the products in this shop are at a favorable price , and have quality assurance , you can rest assured to buy , we will give you the best and highest quality shopping experience! Note: Setting 3.3V and 5.0V output (this is the power to the microcontroller, the need to upgrade the machine) Please pull out the small plate from the computer, set the jumper to take, do not charge it to avoid damage to the device. Pin connection and description: Connector pin assignments before you must find, especially GND must not be connected to the voltage pin, and RX and TX side do not connected to the VCC pin, the (actual measurement had some VCC pin voltage up to 14V.) Wrong shall be burnt chip adapter cable, be sure to note, do not take their own small board to do the experiment, otherwise we are not responsible for any burn. We must find a good pin definitions in the access. Connection method: Again Brush only need three lines, generally used only RX TX GND three signal lines, VCC no connection. The above is 4,5 needles friends, not to VCC and BT needle. Please use the RXD and target board TX phase, TXD and target board RX phase, GND connection GND, if not, were reversed RX and TX. Connection: RX for TX; TX to RX; Ground-ground (GND to GND) Black cable-----GND Green cable----TXD White cable----RXD Red cable -----VCC(5V) Driver link: https://www.adrive.com/public/kRPsVm/k000306%20driver USB to serial platelet function: 1.simple serial communication. 2.or ADSL router firmware upgrade. 3.GPS serial communication. 4.hard drive firmware upgrade. 5.easy to use, RX received the MCU TX; TX RX received at the MCU connected to ground. Without the need for conversion MAX232. 6.Super Terminal in use; common serial debugging tools. 7.upgrade with a variety of satellite machine. Feature: USB TO RS232 TTL PL2303HX AUTO CONVERTER MODULE ADAPTER 5V OUTPUT, PROVIDES THE BEST AND CONVENIENT WAY TO CONNECT YOUR RS232 TTL DEVICES OR DEMO BRD. TO YOUR COMPUTER, VIA THE USB PORT. Built-in TTL COM PC-PL2303HX Chip Standard USB type A male and TTL 4 pin connector Cable length: 1000mm (39 3/8 in) Simple and Easy way to give USB support to your designs Available for Linux, WinCE and Windows (XP, 2003), Vista, Win 7 Package included: 1 x PL2303 PL2303HX USB to UART TTL Cable Module 4p 4 pin RS232 Converter Packed Safely in Bubble Bag. #PL2303HX USB to UART TTL Cable Module
