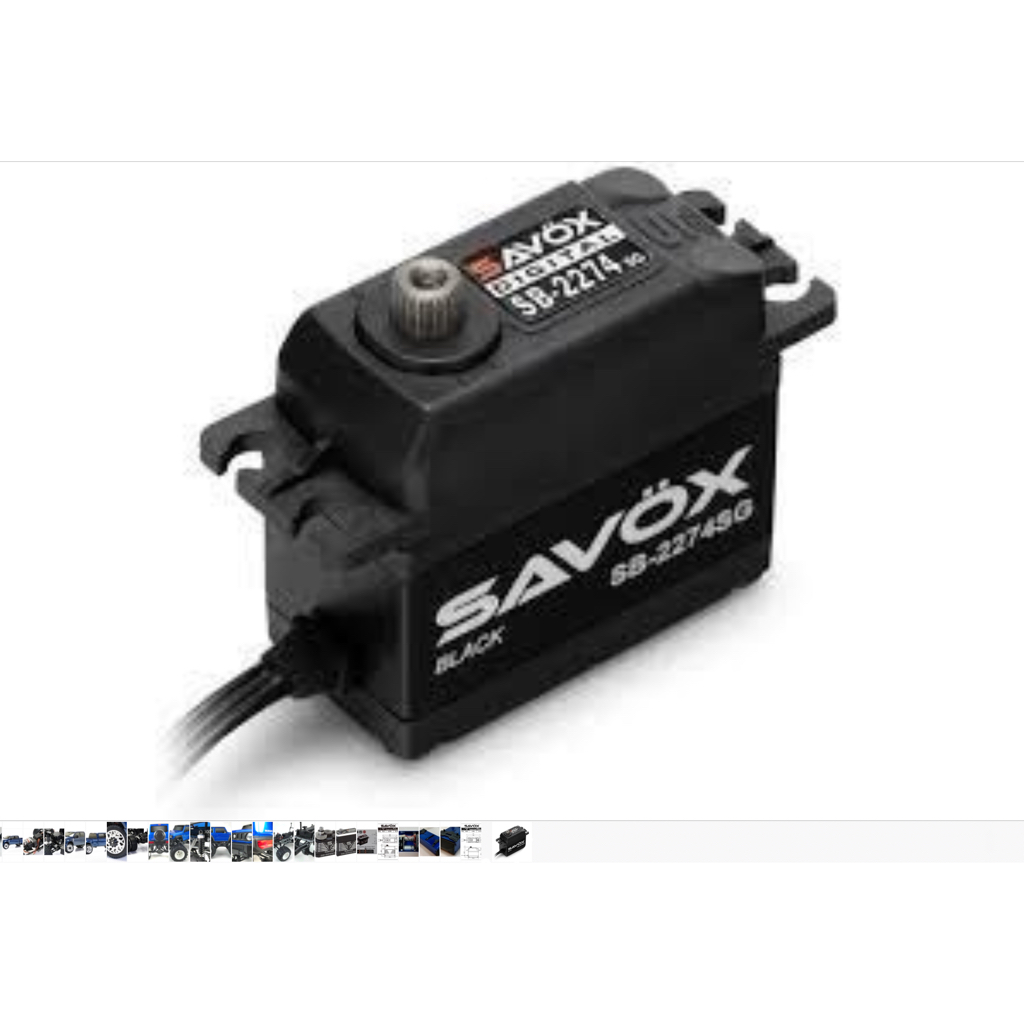

เซอร์โวดิจิตอล SAVOX SB-2274SG Black Edition 25-30kg/0.08-0.07sec./-7.4-8.4v

รายละเอียดสินค้า เซอร์โวดิจิตอล SAVOX SB-2274SG Black Edition 25-30kg/0.08-0.07sec./-7.4-8.4v Operating Temperature: 14° - 122°F (-10° - 50°C) Running Current (no load): 180mA @6.0V, 220mA @7.4V Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V Idle Current: 5mA @6.0V, 5mA @7.4V Wire Length: 300 +/- 5mm Output Gear Spline: 25 Tooth Bearings: 2BB Operating Travel: 100° (1000 → 2000 µ second) Neutral Position: 1500 µ second Pulse Width Range: 800 → 2200 µ second Maximum Travel: Appx 130° (900 → 2100 µ second) Refresh Rate: 333 Hz Motor Type: Brushless SB2274-SG-BE - Black Edition SSR Mode New Firmware High Voltage Brushless Digital Servo 0.080-0.07s/25kg-30kg@7.4V-8.4v Description The Savox SB-2274SG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. Features: Unique steel gear train. Capable of HV operation. Brushless motor for smooth operation and efficiency. Ideal for 1/10, 1/8 buggies, and large scale aircraft. Specifications: Torque @ 6v - 20.0kg/277.7oz-in Torque @ 7.4v - 25.0kg/347.2oz-in @30.0kg @ 8.4v Speed @ 6v - 0.105 sec/60 deg Speed @ 7.4v - 0.08 sec/60 deg 0.07sec Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7 Weight: 69.0g
