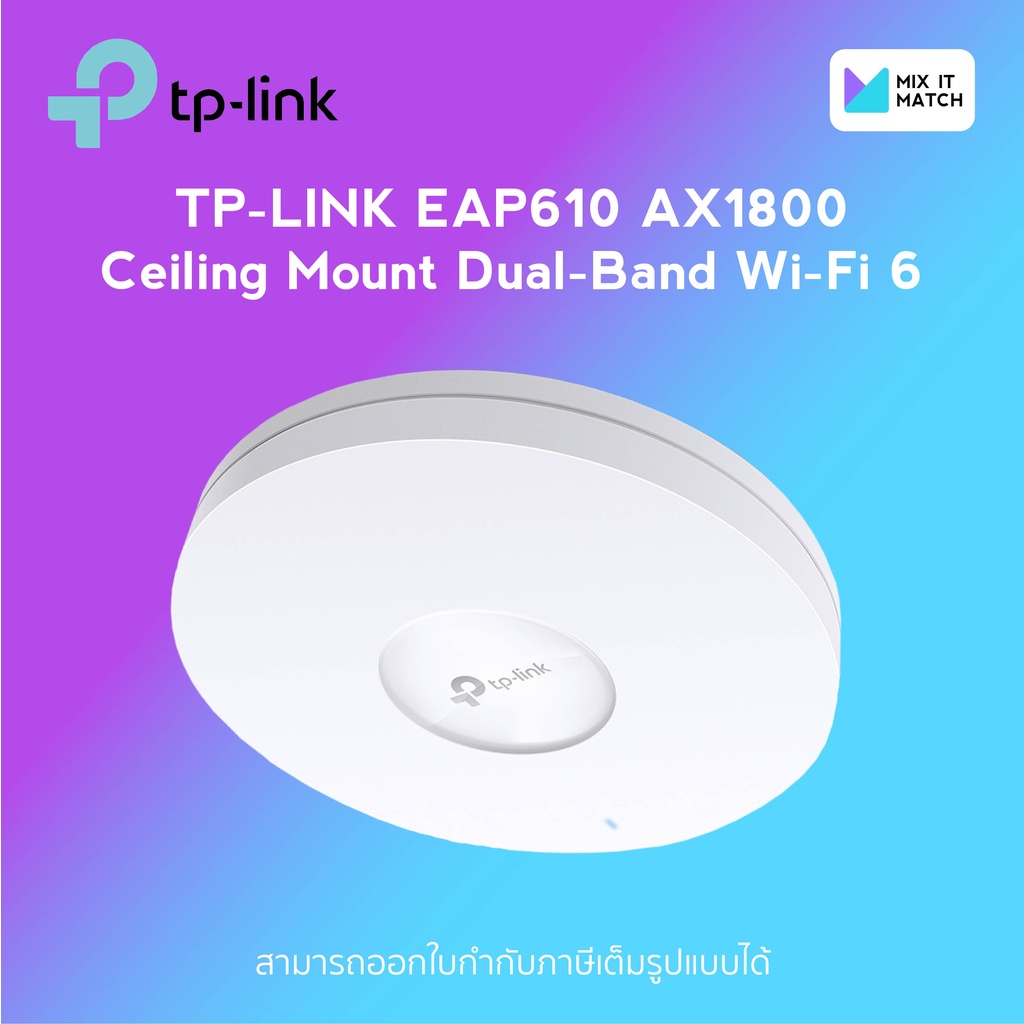

TP-LINK EAP610 AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point (EAP610)

HARDWARE FEATURES Interface • 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) Button • Reset Power Supply • 802.3at PoE • 12 V / 1 A DC Power Consumption • EU: 12.8 W (For PoE); 10.8 W (for DC) • US: 13.9W (For PoE); 11.8 W (for DC) Dimensions ( W x D x H ) • 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) Antenna Type Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi Mounting • Ceiling /Wall Mounting (Kits included) WIRELESS FEATURES Wireless Standards • IEEE 802.11ax/ac/n/g/b/a Frequency • 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz) MANAGEMENT Omada App • Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access • Yes (Through OC300, OC200, or Omada Software Controller) Email Alerts • Yes LED ON/OFF Control • Yes Management MAC Access Control • Yes SNMP • v1, v2c, v3 System Logging Local/Remote Syslog • Local/Remote Syslog SSH • Yes Web-based Management • HTTP/HTTPS L3 Management • Yes Multi-site Management • Yes Management VLAN • Yes OTHERS Certification • CE, FCC, RoHS Package Contents • EAP610 • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide System Requirements • Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing Warranty Limited Life Time
