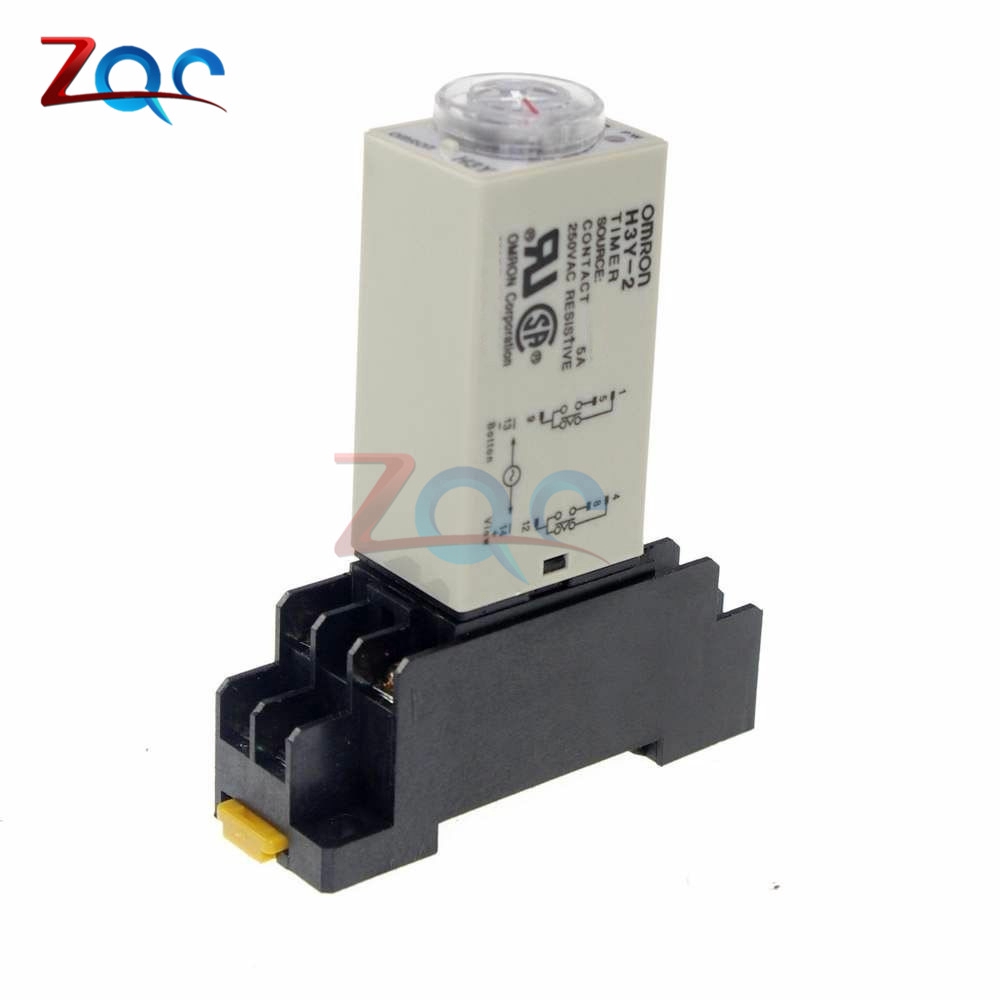

H3Y-2 Timer Relay AC36V AC110V AC220V DC 12V DC24V 1-60 Second 5-60 with Base Socket

Description: Item :Time Delay Relay, Solid-State Timer H3Y-2-30M, 1.0~30M, On-Delay, DPDT, 8Pins 110V AC Contact Form :DPDT Pins :8 Dielectric Strength :2000V 50/60Hz Min(Not include DC12V) between current-carrying and exposed non-current-carrying metal parts and between contact and control circuit Dielectric Strength :1500V 50/60Hz Min(Not include DC12V) between control output terminals and operating circuit Dielectric Strength :1000V 50/60Hz Min between contacts Function: On-Delay Contact Amp Rating (Resistive) :5 Coil Volts :AC36V AC110V AC220V DC 12V DC24V Rated Time Range : 1-60 Second 5-60 Minute Mounting :Surface/Din-Track Mounting(with socket) Matched Relay Socket :PYF08A, PYF08A-E, PYF08A-N, SYF08A Package Included: 1 x Delay Timer Time Relay 1 x H3Y-2 Relay Base
