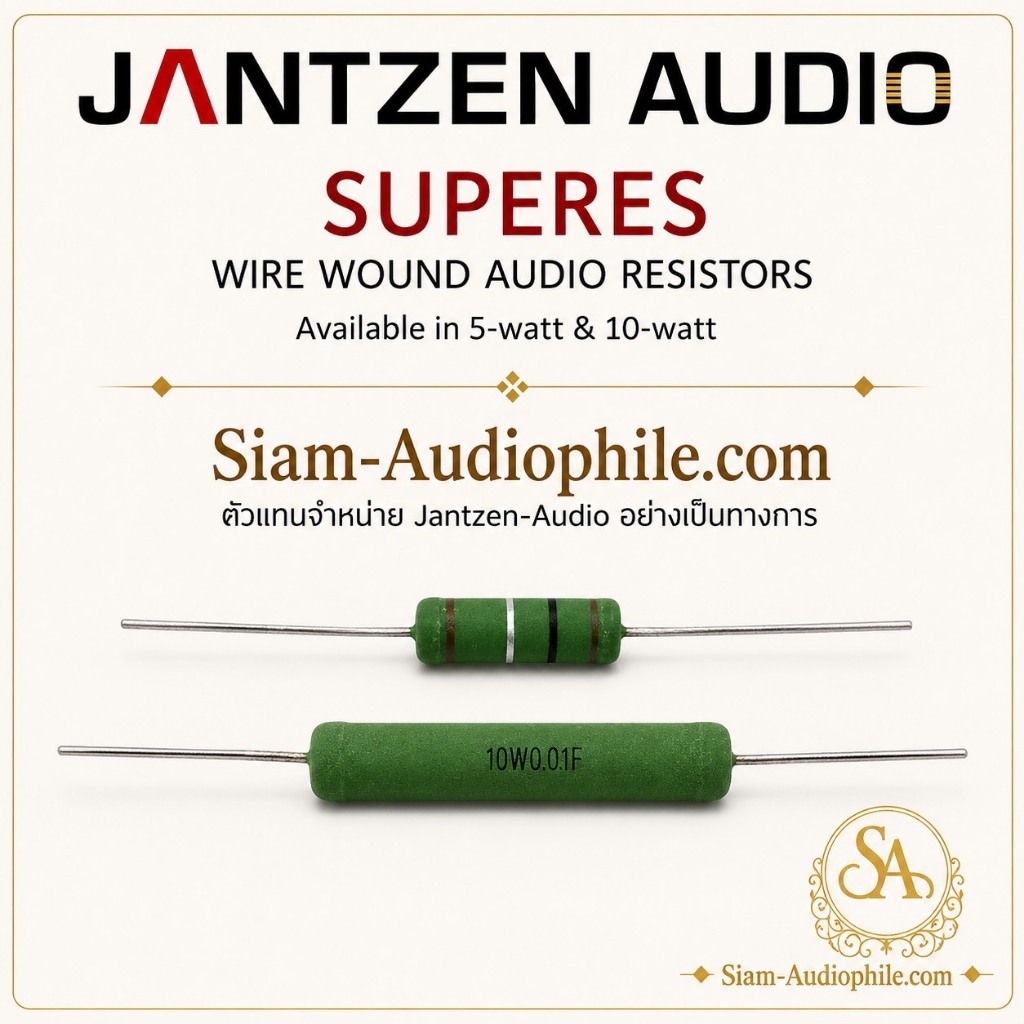

Jantzen Audio SUPERES WIRE WOUND AUDIO RESISTORS

PRODUCT FEATURES The Superes resistors are the highest quality wire wound audio grade resistors. They feature a high temperature tolerance and are very resistant to shock. These resistors have always been a staple for high-end audio manufacturers and DIY enthusiasts. The Superes resistors offer high-end performance, but at an affordable price point. Available in both 5 watt and 10 watt. TECHNICAL DATA • Wire wound high-end audio resistors • Conductor type and material: Wire wound (CuNi or NiCr) • Resistance tolerance: +/- 1% • Instant overload capacity • Very high heat dissipation with a small linear temperature coefficient • Low annual shift • Flame proof wrapping • Dimension 5-watt resistors: Ø 6 mm/L 19 mm • Dimension 10-watt resistors: Ø 8.5 mm/L 53 mm TECHNICAL DATA • Operating temperature range: -55℃～200℃ • Resistance temperature coefficient: • Temperature cycle: ตารางค่า Resistor Superes wirewound Superes 10W 1% wirewound 0.47 Ohms Superes 10W 1% wirewound 0.56 Ohms Superes 10W 1% wirewound 1.0 Ohms Superes 10W 1% wirewound 1.2 Ohms Superes 10W 1% wirewound 1.5 Ohms Superes 10W 1% wirewound 1.6 Ohms Superes 10W 1% wirewound 1.8 Ohms Superes 10W 1% wirewound 2.0 Ohms Superes 10W 1% wirewound 2.2 Ohms Superes 10W 1% wirewound 2.4 Ohms Superes 10W 1% wirewound 2.7 Ohms Superes 10W 1% wirewound 3.3 Ohms Superes 10W 1% wirewound 3.6 Ohms Superes 10W 1% wirewound 3,9 Ohms Superes 10W 1% wirewound 4.3 Ohms Superes 10W 1% wirewound 4,7 Ohms Superes 10W 1% wirewound 5.1 Ohms Superes 10W 1% wirewound 5.6 Ohms Superes 10W 1% wirewound 6.2 Ohms Superes 10W 1% wirewound 6,8 Ohms Superes 10W 1% wirewound 7.5 Ohms Superes 10W 1% wirewound 8.2 Ohms Superes 10W 1% wirewound 10 Ohms Superes 10W 1% wirewound 12 Ohms Superes 10W 1% wirewound 15 Ohms Superes 10W 1% wirewound 22 Ohms Superes 10W 1% wirewound 27 Ohms Superes 10W 1% wirewound 33 Ohms Superes 5W 1% wirewound 0.47 Ohms Superes 5W 1% wirewound 0.68 Ohms Superes 5W 1% wirewound 68 Ohms Superes 5W 1% wirewound 75 Ohms ****สำคัญมากโปรดอ่านค่ะ**** ****ราคาขายสินค้าต่อชิ้นนะค่ะ**** ##สามารถจับคู่ค่าให้ได้นะค่ะ มีค่าบริการค่ะ ##ตรวจสอบ รุ่น ค่า และขนาดก่อน กดสั่งซื้อนะค่ะ ##สินค้าไม่รับเปลี่ยนคืนทุกกรณี ยกเวันทางร้านส่งผิดค่ะ
