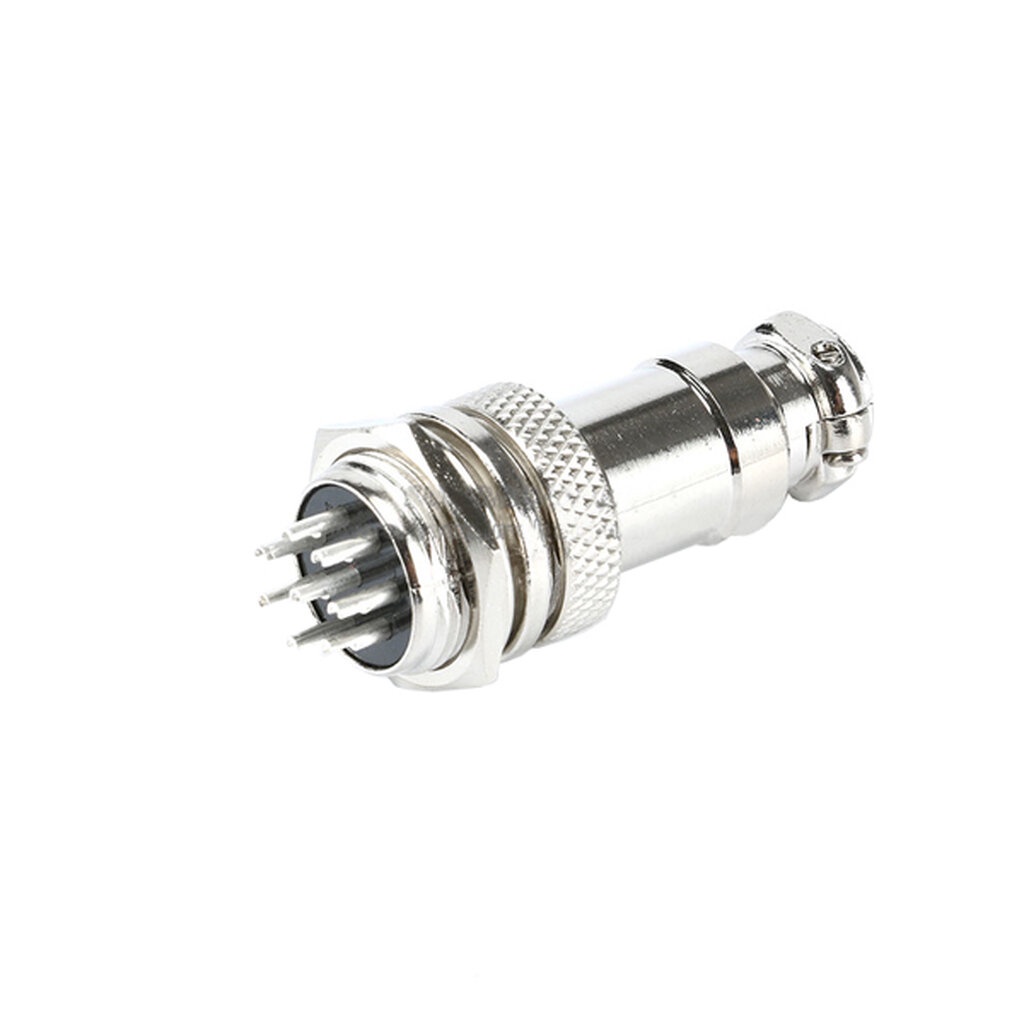

ปลั๊กเหล็ก GX16 - 8 PIN Male & Female - Connectors Socket Aviation Plug

Specifications: Model: GX 16 - 8 PIN Material: Zinc alloy+Bakelite Pin quantity: 8 Pin Plug diameter: 16 mm Max voltage: 400V Max current: 5A Withstand voltage: 1200V AC Insulator resistance: 500M Ohm Contact resistance: Male Connector Length: 21mm/0.83" Female Connector Length: 36mm/1.42" Model GX12 GX16 GX20 NO.OF contacts(Pin) 2/3/4/5/6/7 2/3/4 5 6/7/8/9/10 2/3/4/5 6/7 8/9/10/12/14 Rated current/voltage 3A-125V 7A-125V 5A-125V 3A-125V 10A-150V 6A-150V 5A-150V Operation limi voltage (AC.V)minute 200 200 200 200 400 300 250 Withstanding voltage (AC.V)minute 1500 1500 1500 1500 1500 1500 1500 Insulation resistance (M MIN.) at DC 500V 1500 1500 1500 1500 2000 2000 2000 Contact resistance (M MAX.)at DC 1A 10 7 8 10 6 8 9 Contact diameter (mm) 1.2 2.5 2 1.2 3.0 2.0 1.5
