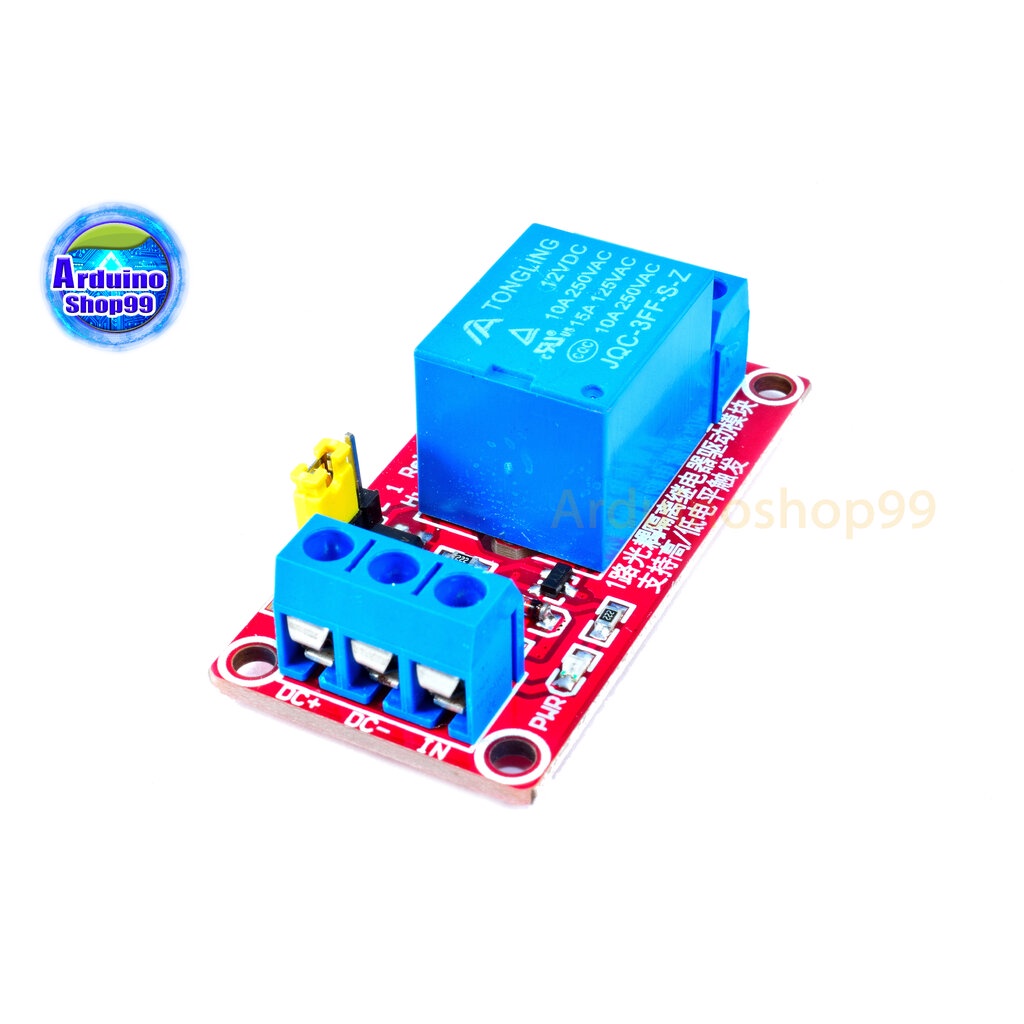

Relay 12V 1 Channel 10A 250V แบบ Active High/Low

Relay 12V 1 Channel 10A 250V แบบ Active High/Low Features: Voltage 12V to change the high / low normal load interface to interface up: AC 250V / 10A, DC 30V /. 10A is an optically isolated optocoupler SMD, driving ability, stable performance. Run current 5mA designed to withstand a crash, even if the line is broken, the transmission controller will not work. LED power indicator (green), the indicator light relay (red), the interface design, human connection, all available through a direct connection import terminal is very convenient sizes: 4.9 x 2.5 x 2 cm Interactive. interface modules: the DC +,: positive power supply (the VCC) DC-: negative power supply (GND). IN: can relay high or low. Relay: the NO: Interactive Interface relay normally open COM: Relay common interface NC: relay normally closed relay. Options run the high and low: a low level when the jumper is connected to pin LOW trigger high level when the jumper is connected to the pin high.
