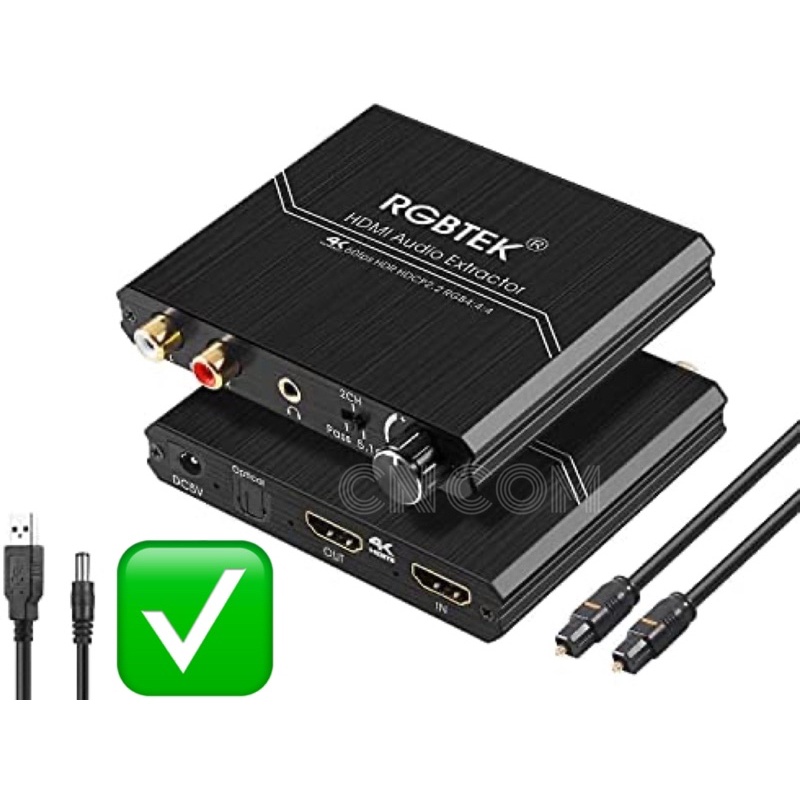

HDMI Audio Extractor Converter HDMI 2.0 to SPDIF+R/L+3.5MM Supports 18Gpbs HDR10 YUV 4:4:4 HDCP 2.2 CEC Volume Control

HDMI Audio Extractor 4K@60HZ, HDMI 2.0b Audio Converter Adapter, HDMI to HDMI + Optical Toslink SPDIF + 3.5mm RCA R/L Audio Out, with Volume Knob, Control The Output Analog Volume for PS5/4/Blu-ray Introduction: This audio extractor can be connected between the source device (DVD player, Blu-ray player, network player, set-top box, PS2, PS3, Xbox360, PC, etc.) and the display device (TV, HD monitor, projector), It can synchronously separate one optical fiber signal and one R/L signal connect stereo channel to the sound system to obtain high-quality audio signals. Support audio formats such as AC-3, DTS, LPCM.The product is also designed with a volume knob, which can flexibly control the output analog volume. Features: Support 1 HDMI input port Support 1 HDMI output port Support 1 optical fiber digital audio output port Support 1 stereo audio output port, connect to 600 Ω high-impedance headphone Support 1 R/L audio output port Support input resolution up to 4K/60fps. Support Volume Control Support 3D, HDR. YUV4:4:4 Support HDCP2.2 Support AC3, DTS, LPCM and other digital audio formats Audio output supports 3 EDID selection modes (2CH/5.1CH/ PASS) Lossless signals Simple installation Specifications: HDCP Version .................................................HDCP 2.2 Input/Output Resolution.............................1080p/60fps, 4K/30fps,4K/60fps Deep color.................................4K/60fps-YUV444-8bit; 4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz HDMI Max Bandwidth.........................................600MHz HDMI Max Baud Rate.........................................18Gbps Input Output TMDS Signal...................0.5~1.5Vp-p(TTL) Input Output DDC Signal...............................5Vp-p(TTL) DAC sampling frequency ............................32~192 KHz DAC bit rate......................................................16~24 Bit RCA analog output (1KHz@0dB).......................1V RMS 3.5mm audio interface maximum output level....................................................................6.5Vp-p 3.5mm audio port maximum output power.............................................................32Ω30mW Signal to noise ratio @0dB(CC1R/ARM).............≥90dB Distortion degree..................................................≤0.1% Frequency response..................................20HZ~20KHz HDMI Input Cable Distance..............≤3m AWG26 HDMI Standard Cable HDMI Output Cable Distance.......≤3m AWG26 HDMI Standard Cable Max Working Current............................................400mA Power Adapter Format........AC 100V-240V 50/60HZ,DC 5V/1A Operating Temperature Range.......................-10~+55℃ Storage Temperature Range...........................-20~+60℃ Operating Humidity Range......................10~90%RH(No Condensation) Storage Humidity Range..........................5~95%RH(No Condensation) Case Dimension....................................100x 95x 20 mm Bare weight..............................................................117g
