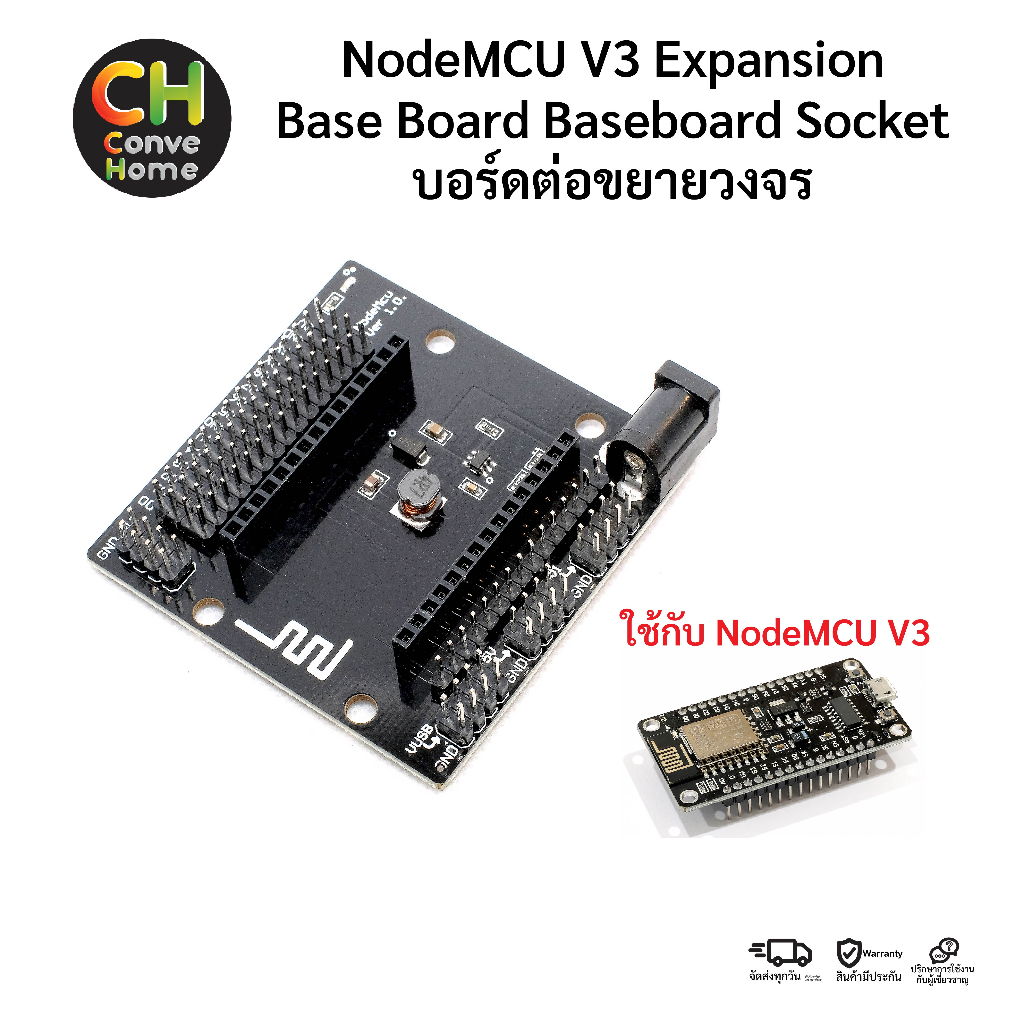

NodeMCU V3 Expansion Base Board Baseboard Socket บอร์ดต่อขยายวงจร

NodeMCU V3 Expansion Base Board Features: - Barrel Input Connector for DC Voltage Input for AC/DC Adapters (5VDC) - All NodeMCU Lolin V3 pinouts are brought on headers - Multiple Header pins for ease of connectivity with other external devices - On-Board Switch-mode 5V regulator - Power Supply Headers for : VIN +5V 3.3V USB VCC / VUSB - Antenna Mark for Correct orientation of the NodeMCU module insertion - On board LED indicator Technical Specifications: - Input Voltage: 5V DC - PCB Thickness: 1.6mm - NodeMCU Pin Distance between sides: ~28.0mm - Pin Pitch: 2.54mm (0.1in) - Board Dimensions: 60.0mm x 60.0mm x 15.0mm (L x W x H) - Weight: 22.5 g สินค้ารับประกัน 7 วัน
