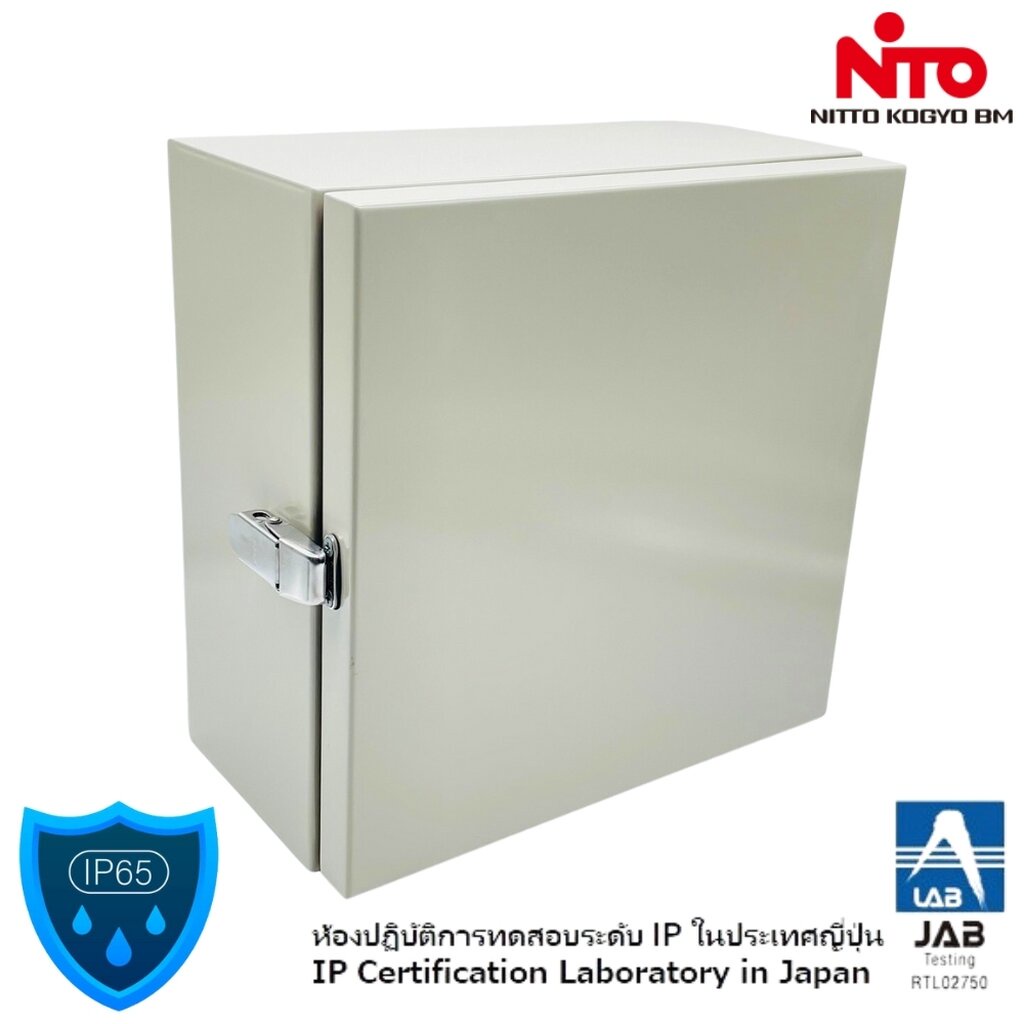

"NITTO KOGYO" CAL12-34 SIZE : W300xH400xD120 mm. ตู้เหล็ก ตู้ไฟสวิทช์บอร์ดแบบกันฝุ่นกันน้ำ IP65 ความหนาตัวตู้ 1.2 มม.

TH-Model Enclosure CAL SERIES High IP enclosure - IP65, higher dust-proof and water-proof - 2 types of handle: double-bit cam lock and latch, which provides the largest area on the front surface Color Light beige Paint Powder paint, smooth, without E-coat Material/Thickness Steel/ Door and Body: 1.2mm Mounting plate Steel (t1.5mm) Without grid line Application/IP degree Indoor/Outdoor/IP65 Door Single door Handle Latch (can be locked with padlock) CAL series: Latch type Model External dimensions (mm) Mounting plate (mm) Usable Depth (mm) Weight (kg) Drawing Download W H D W1 H1 D1 CAL12-152 150 200 120 100 150 103 2.0 PDF DXF CAL12-22 200 200 120 150 150 103 2.5 PDF DXF CAL12-225 200 250 120 150 200 103 3.0 PDF DXF CAL12-23 200 300 120 150 250 103 3.3 PDF DXF CAL12-252 250 200 120 200 150 103 2.9 PDF DXF CAL12-2525 250 250 120 200 200 103 3.4 PDF DXF CAL12-253 250 300 120 200 250 103 4.0 PDF DXF CAL12-32 300 200 120 250 150 103 3.3 PDF DXF CAL12-33 300 300 120 250 250 103 4.6 PDF DXF CAL12-34 300 400 120 250 350 103 5.7 PDF DXF CAL12-43 400 300 120 350 250 103 5.8 PDF DXF CAL16-33 300 300 160 250 250 143 5.1 PDF DXF CAL16-44 400 400 160 350 350 143 8.0 PDF DXF CAL16-55 500 500 160 450 450 143 11.4 PDF DXF CAL20-33 300 300 200 250 250 183 5.7 PDF DXF CAL20-44 400 400 200 350 350 183 8.7 PDF DXF CAL20-55 500 500 200 450 450 183 12.3 PDF DXF CAL25-33 300 300 250 250 250 233 6.2 PDF DXF CAL25-44 400 400 250 350 350 233 9.6 PDF DXF CAL25-55 500 500 250 450 450 233 13.4 PDF DXF Opetional accessory ■Mounting rail - Alternative of mounting plate - For attaching DIN rail and a panel Model Height of applicable enclosure Drawing CXN-3 300mm PDF DXF CXN-4 400mm PDF DXF CXN-5 500mm PDF DXF ■Side mounting rail - Attachable onto the side hole *Not applicable to D120 enclosure *DIN rail is not included Model Height of applicable enclosure Drawing CXL-3 300mm PDF DXF CXL-4 400mm PDF DXF CXL-5 500mm PDF DXF
