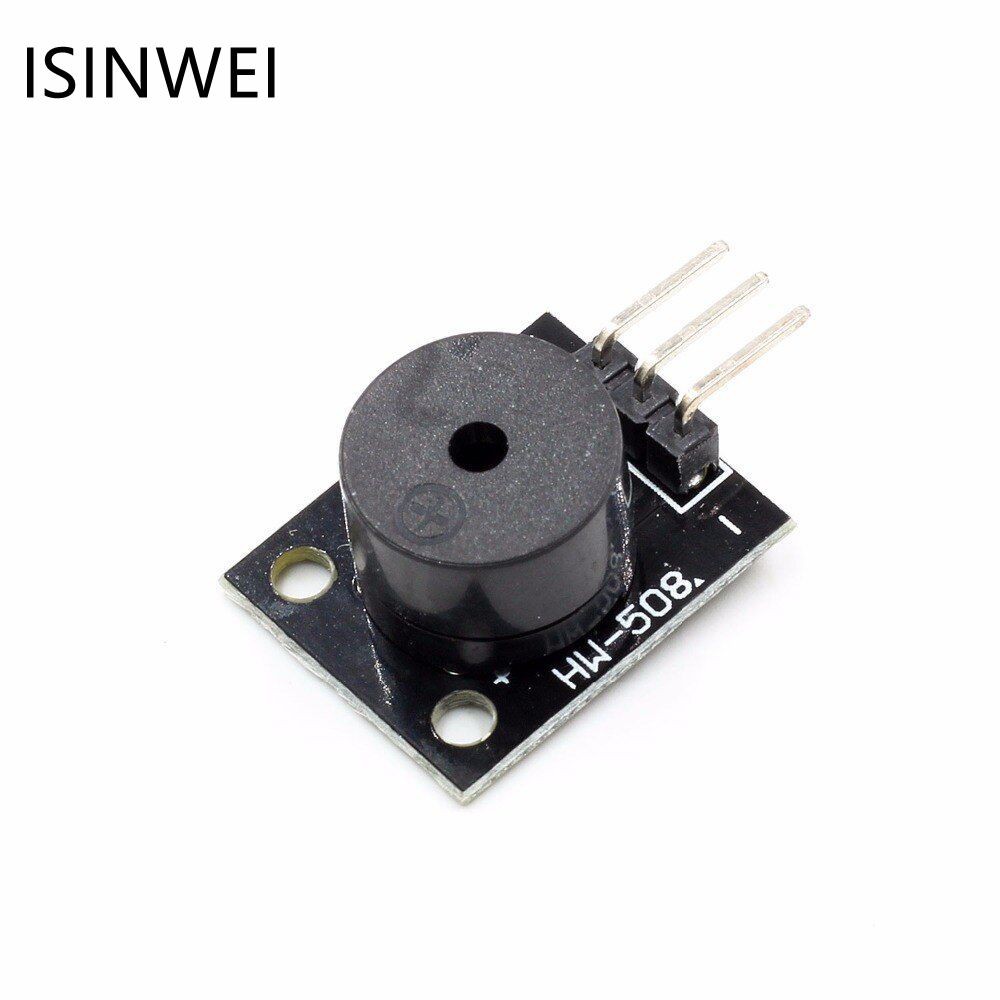

โมดูลลําโพง Buzzer 3 . 5-5 . 5 V 5 ชิ้นสําหรับ Arduino Avr Pic

5pc 3.5-5.5V Standard Passive Speaker Buzzer Module For Arduino AVR PIC Module Board Specifications: Color: Black Quantity: 1 pc Working voltage:3.5-5.5V Working current:<25mA PCB Dimension：18.5mm x 15mm(LxW) Passive Buzzer Module Feature: 1.No oscillation source, need square wave (frequency 2K-5K ) to drive. 2.Sound frequency control, you can make a "do re mi fa sol la si" effect. For Arduino reference source programme: int buzzer=8;// Set the control the buzzer digital IO pin void setup() { pinMode(buzzer,OUTPUT);// Setting the digital IO pin mode , OUTPUT is Wen out } void loop() { unsigned char i,j;// Define the variable while(1) { for(i=0;i<80;i++)// Wen a frequency sound { digitalWrite(buzzer,HIGH);// Sound delay(1);//delay 1ms digitalWrite(buzzer,LOW);//Not sound delay(1);// delay 1ms } for(i=0;i<100;i++)// Wen out another frequency sound { digitalWrite(buzzer,HIGH);// Sound delay(2);//delay 2ms digitalWrite(buzzer,LOW);// Not sound delay(2);//delay 2ms } } } After downloading the program, the buzzer experiments are finish. Package includes: 5 x Standard Passive Buzzer Module #3.5-5.5V #Standard #Passive #Speaker #Buzzer #Module #For #Arduino #AVR #PIC #Module #Board
