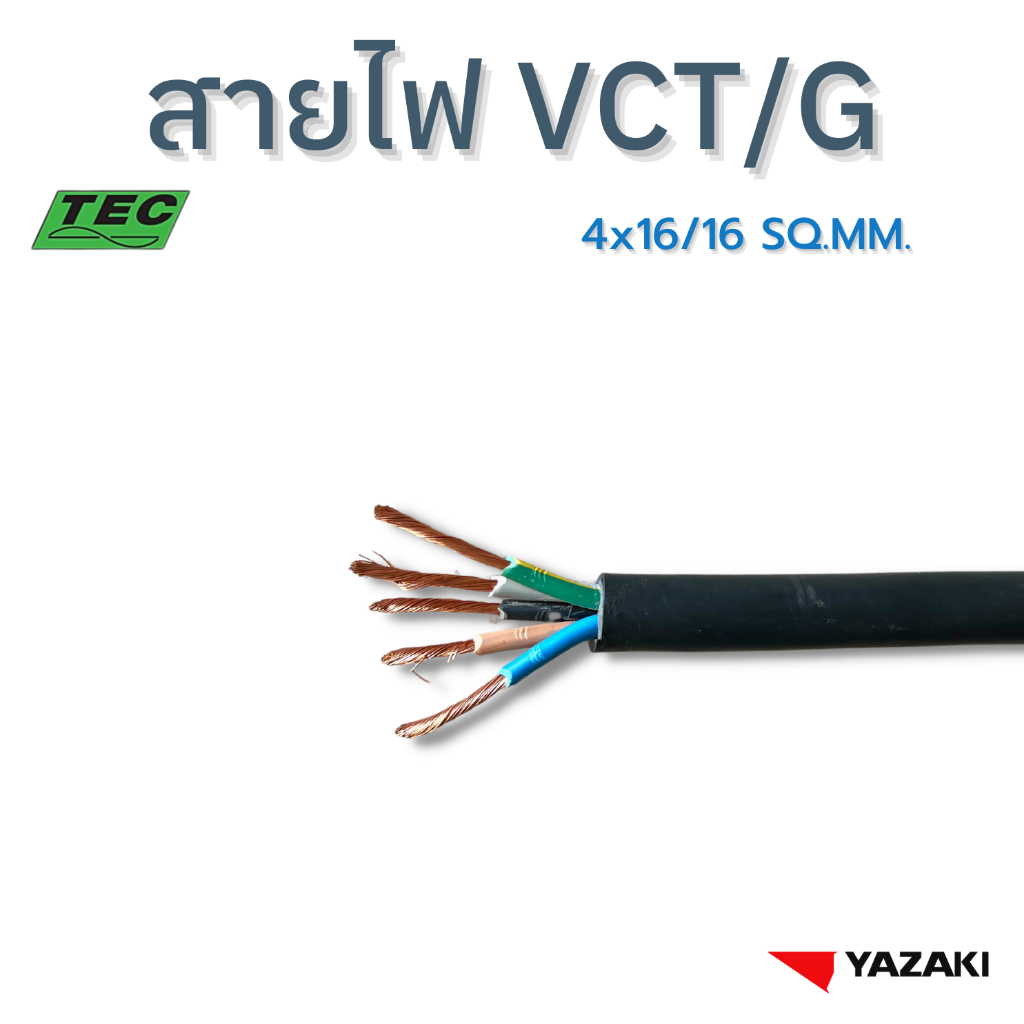

YAZAKI สายไฟ VCT/G 4c x 16/16 sqmm. 450/750V 70°C

VCT/G 4 x 16/16 sqmm 450/750 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, ROUND TYPE CONDUCTOR Flexible annealed copper INSULATION Polyvinyl chloride (PVC/D) CORE IDENTIFICATION 4 Cores : Blue Brown Black,Grey + Green/Yellow size 16/16 sqmm OUTER SHEATH Black polyvinyl chloride (PVC/ST5) CLASSIFICATION Maximum conductor temperature 70°C Circuit voltage not exceeding 450/750 Volts RATED VOLTAGE 450 Volts between Line to Earth 750 Volts between Line to Line TESTING VOLTAGE 2,500 Volts REFERENCE STANDARD TIS 11 Part 101-2553, Table 8 APPLICATION For mobile-electrical
