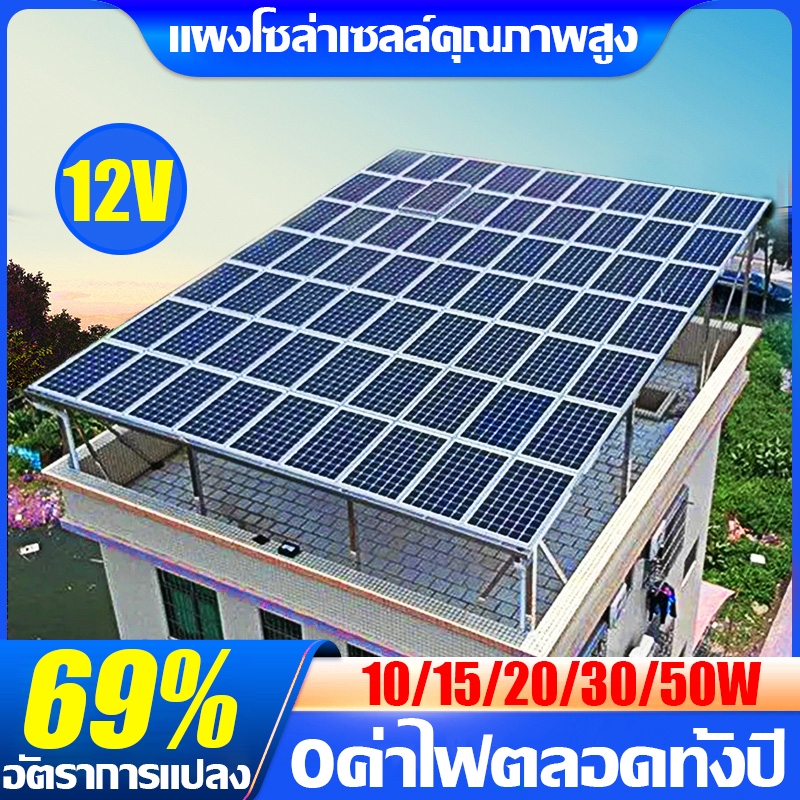

แผงโซล่าเซลล์ 12v10w15w20w30w50w solar cell panelโซล่า เซลล์ Monocrystalline กันน้ำและกันฟ้าผ่ แผงพลังงานแสงอาทิตย์

รายละเอียดสินค้าเฉพาะรุ่น 1.) Specification:￠12v10W -Model: SZ-Solar module-12v-10W -Type: single crystal -Maximum power output (Pm): 10w -Maximum operating voltage (Vmp): 12V -Maximum power current (Imp): 0.83A -Open circuit voltage (Voc): 15.6V -Short circuit current (Isc): 0.91A -Maximum system voltage: 1000V -Size: 235 mm x 350 mm 2.) Specification:￠12v15W -Model: SZ-Solar module-12v-15W -Type: single crystal -Maximum power output (Pm): 15w -Maximum operating voltage (Vmp): 12V -Maximum power current (Imp): 1.25A -Open circuit voltage (Voc): 15.6V -Short circuit current (Isc): 1.37A -Maximum system voltage: 1000V -Size: 290 mm x 350 mm 3.) Specification:￠12v20W -Model: SZ-Solar module-12v-20W -Type: single crystal -Maximum power output (Pm): 20w -Maximum operating voltage (Vmp): 12V -Maximum power current (Imp): 1.66A -Open circuit voltage (Voc): 15.6V -Short circuit current (Isc): 1.83A -Maximum system voltage: 1000V -Size: 400 mm x 350 mm 4.) Specification:￠12v30W -Model: SZ-Solar module-12v-30W -Type: single crystal -Maximum power output (Pm): 30w -Maximum operating voltage (Vmp): 12V -Maximum power current (Imp): 2.5A -Open circuit voltage (Voc): 15.6V -Short circuit current (Isc): 2.75A -Maximum system voltage: 1000V -Size: 530 mm x 350 mm 5.) Specification:￠12V50W -Model: SZ-Solar module-12V-50W -Type: single crystal -Maximum power output (Pm): 50w -Maximum operating voltage (Vmp): 12V -Maximum power current (Imp): 4.16A -Open circuit voltage (Voc): 15.6V -Short circuit current (Isc): 4.57A -Maximum system voltage: 1000V -Size: 670 mm x 700 mm
