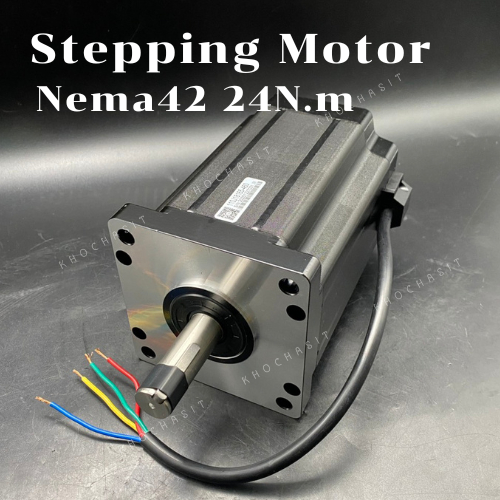

NEMA42 20N.m /NEMA42 24N.m Stepping motor 110J18150-460 /110J18165-460 (JMC Brand)

Stepping motor JMC-110J18150-460 - 20 NM. Speification Number of phase ; 2 Step Angle ; 1.8° Position Accuracy ; ±0.09° Rated Current / phase ; 6.0A Resistance /phase ; 0.9Ω±10% Inductance / phase ; 16 MH±20% Holding Torque ; 20 N.m Rotate Interia ; 8.5 K.g. Dielectric Strength ; 500V AC Insulation Resistance ; 100MΩ/min insulation Classe (UL) ; B Temperature Rise Max ; 80K Working Ambient Temperature ; 0~ 50 ํ C Working Ambient Humidity ; 20% ~ 90%RH Storage Ambient Temperature ; -20 ~ 70 ํ C Storage Ambient Humidity ; 15% ~ 90%RH Stepping motor JMC-110J18165-460 - 24 NM. Speification Number of phase ; 2 Step Angle ; 1.8° Position Accuracy ; ±0.09° Rated Current / phase ; 6.0A Resistance /phase ; 0.8Ω±10% Inductance / phase ; 14 MH±20% Holding Torque ; 24 N.m Rotate Interia ; 9.5 K.g. Dielectric Strength ; 500V AC Insulation Resistance ; 100MΩ/min insulation Classe (UL) ; B Temperature Rise Max ; 80K Working Ambient Temperature ; 0~ 50 ํ C Working Ambient Humidity ; 20% ~ 90%RH Storage Ambient Temperature ; -20 ~ 70 ํ C Storage Ambient Humidity ; 15% ~ 90%RH **สนใจสามารถสอบถามเพิ่มเติมได้ครับ/ค่ะ ของใหม่ 100% มีของพร้อมส่ง ไม่ต้องรอ !!!!
