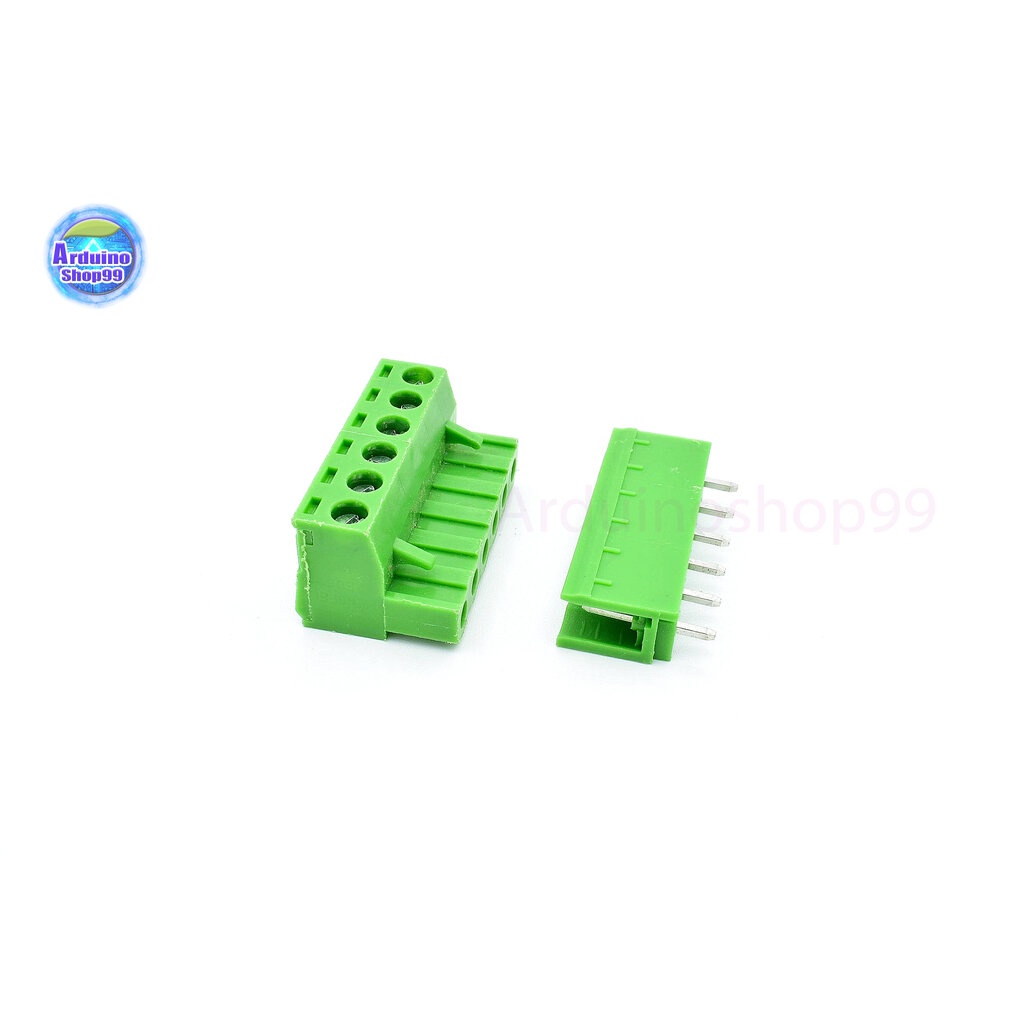

Terminal Block PCB connector 6P / 2EDGK 5.08mm plug-in

Terminal Block PCB connector 6P / 2EDGK 5.08mm plug-in ( 1 ชุด ผู้+เมีย ) Features: For PCB for connecting the power supply or cables designed 90-degree angle for the shortage of PCB space or want to use a 90 degree angle insulating properties do not have to worry about electric shock, safe and reliable. Specifications: Pitch: 5.0 / 5.08 mm Pole: 2P-24P screw: M2.5 galvanized steel terminal ethanol: phosphor bronze, Ni plated wire cages: brass, tin-plated Housing: PA66. .UL94V_0 voltage gain: 300V wire range; 28-12AWG temperature range: -40-105 length bar: 7-8 mm
