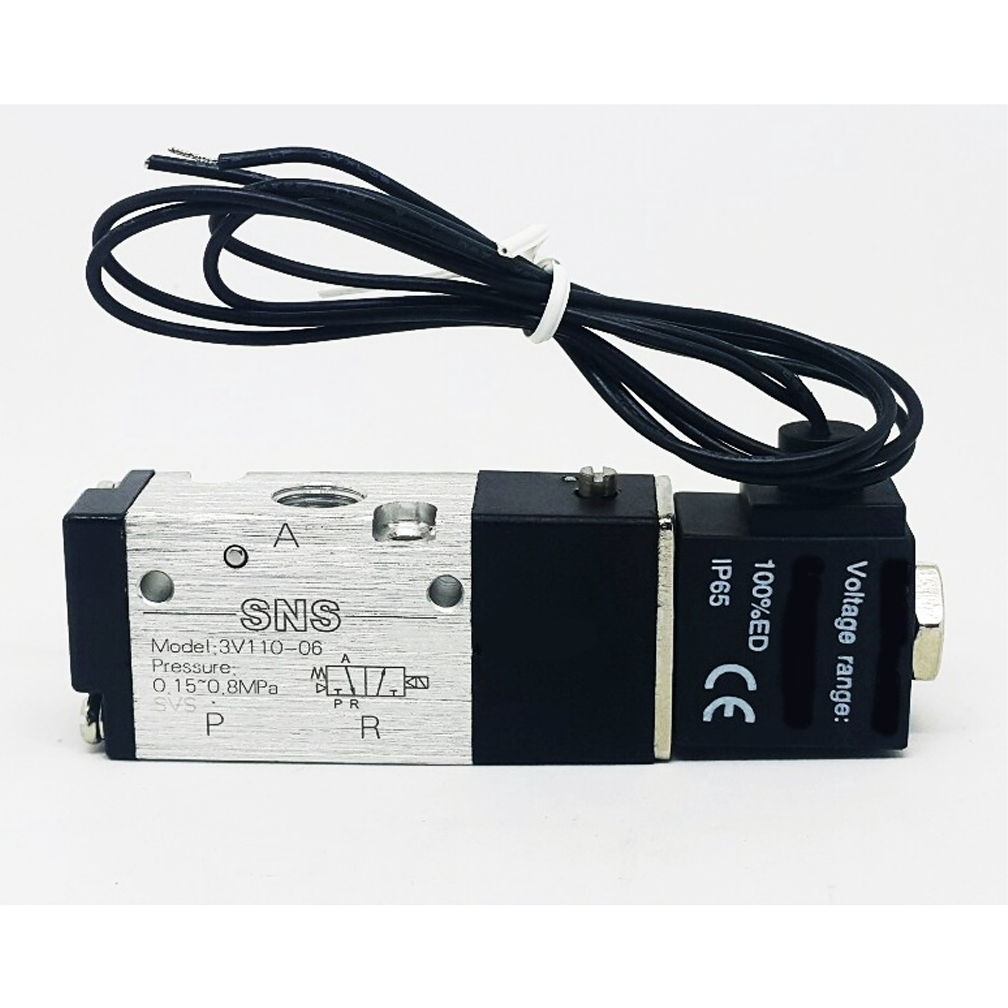

3V110-06 โซลินอยด์วาล์วไฟฟ้า 3/2 ขนาด 1 หุน 1/8 - SNS Pneumatic Solenoid Valve Single Coil 3/2 Port 1/8 วาล์วนิวเมติกส์

Working Media : Air Action Mode : Internal Pilot Type Position : 3/2 Port Effecitive Sectional Area : 12.0mm² (Cv=0.67) Port Size : G1/8" ( ความกว้างเกลียว 9.74mm ) Working Pressure : 0.15~0.8MPa Proof Pressure : 1.0Mpa Working Temperature : 0~60°C Voltage Range : ±10% Power Consumption : AC24V,AC110V,AC220V,DC12V,DC24V ( AC = 5.5VA / DC = 4.8W ) Insulation Grade : F Level Protection Class : IP65(DIN40050) Connecting Type : Wiring Type / Plug Type Max.Operating Frequency : 5 Cycle/Sec Min.Excitation Time : 0.05 Sec Material Body : Aluminum Alloy Material Seal : NBR
