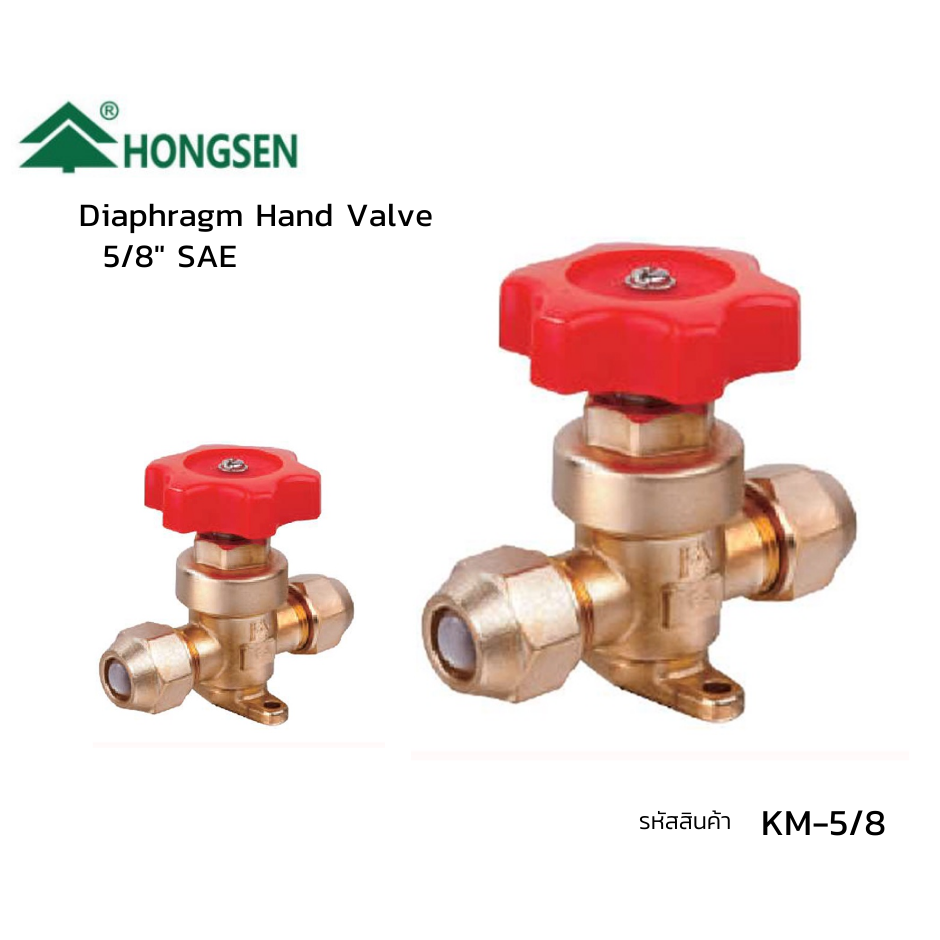

วาล์วไดอะแฟรม ยี่ห้อ Hongsen Diaphragm Hand Valve ขนาด 5/8" แบบเกลี้ยว

สามารถออกใบกำกับภาษีได้ * Model KM hand valve is a manually operated diaphragm stop valve for one-way flow control. * Model KM hand valve is mounted on the liquid, air suction, and hot air piping in the refrigeration, cold storage, and air conditioner. * Two types of connection are available for Model KM hand valve, that is, threaded connection (SAE) with threading size 1/4" SAE to 3/4" SAE and welded connection both ODF, structure hand valves have connection size of 1/4" to 7/8" * All Model KM hand valves are equipped with mounting holes for the installation on the instrument panel. Feature * There are 2 pieces of stainless steel diaphragm ta prevent the hand valve from leakage during the whole service life of the hand valve. * The elastic sealing is used on the valve port so that the hand valve could be shut off by small torque. * The special valve bonnet design a sued to prevent the hand valve from water or dust penetration. * The hand valve is easy to be operated for full open or half-open just by turning the valve stem for one and a half turns. Technical Parameters Applicable Refrigerant HCFC / HFC Applicable Medium Temperature -25˚C ~ +100˚C Max. Operating Pressure 3.0MPa Scope of Operating Pressure -0.1MPa - 2.1MPa Maximum Hydrostatic Test Pressure 4.5MPa *หากต้องการสินค้าเร่งด่วนกรุณาทักแชท
