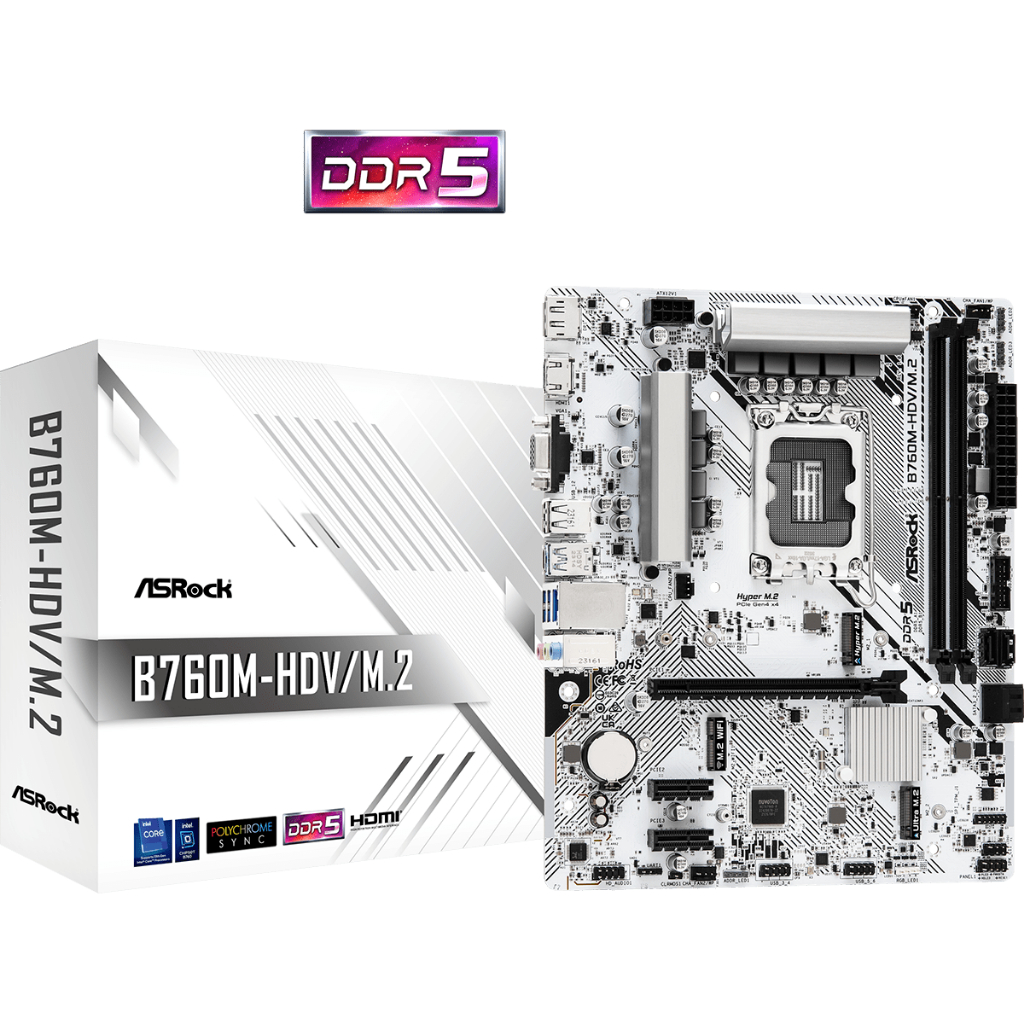

MAINBOARD (เมนบอร์ด) ASROCK B760M-HDV/M.2 (DDR5) (SOCKET LGA 1700)

Model BrandAsrock ModelB760M-HDV/M.2 CPU Socket1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) Wattage150W ChipsetIntel B760 SeriesCeleron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium Memory Slot2 Memory TypeDDR5 Max. Capacity96 GB Speed4400 , 4800 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) Graphic & Audio GraphicRequires a CPU with Integrated Graphics. — Intel Xe Graphics Architecture (Gen 12) • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz • 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz — * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. AudioRealtek ALC897 7.1 CH HD Audio Storage SATA 2- Port SATA 34 Port RAIDRAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices M.22 x M.2 Slots — Chipset: • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* • 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes** — * Supports Intel Volume Management Device (VMD) ** Supports NVMe SSD as boot disks Port Expansion Slots DetailsCPU: • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* — Chipset: • 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module — * Supports NVMe SSD as boot disks Slot1 x PCIe 4.0 x16 Slot , 2 x PCIe 3.0 x1 Slots Network LANDragon RTL8125BG LAN Speed10/100/1000/2500 Mbps WirelessNo Back Panel I/O Ports USB 2.02 Port USB 3.0- Port USB 3.1- Port Serial- Port USB 3.21 x USB 3.2 Gen 1 Type-C 3 x USB 3.2 Gen 1 Type-A Port D-Sub (VGA)1 Port DVI- Port HDMI1 Port DisplayPort1 Port Audio3 Port PS/2No Additional2 x Antenna Mounting Points LAN1 Port Form Factor Form FactorMicro-ATX Power Connector24 + 8 Pin Dimension24.4 x 20.1 cm Warranty การรับประกัน3 Years
