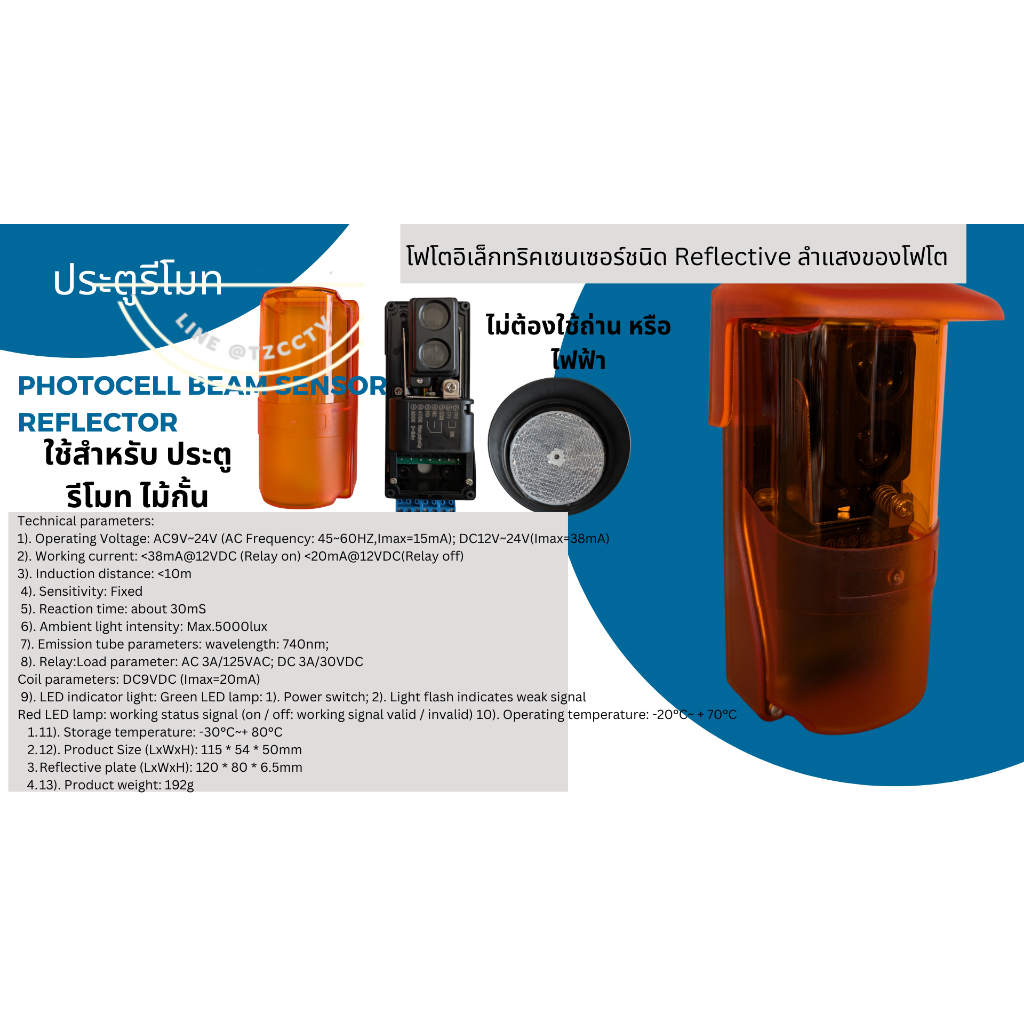

Photocell Beam Sensor Reflector เซ็นเซอร์กันหนีบ เซ็นเซอร์ประตูรีโมท

Photocell Beam Sensor Reflector Technical parameters: 1). Operating Voltage: AC9V~24V (AC Frequency: 45~60HZ,Imax=15mA); DC12V~24V(Imax=38mA) 2). Working current: <38mA@12VDC (Relay on) <20mA@12VDC(Relay off) 3). Induction distance: <10m 4). Sensitivity: Fixed 5). Reaction time: about 30mS 6). Ambient light intensity: Max.5000lux 7). Emission tube parameters: wavelength: 740nm; 8). Relay:Load parameter: AC 3A/125VAC; DC 3A/30VDC Coil parameters: DC9VDC (Imax=20mA) 9). LED indicator light: Green LED lamp: 1). Power switch; 2). Light flash indicates weak signal Red LED lamp: working status signal (on / off: working signal valid / invalid) 10). Operating temperature: -20°C~ + 70°C 11). Storage temperature: -30°C~+ 80°C 12). Product Size (LxWxH): 115 * 54 * 50mm Reflective plate (LxWxH): 120 * 80 * 6.5mm 13). Product weight: 192g
