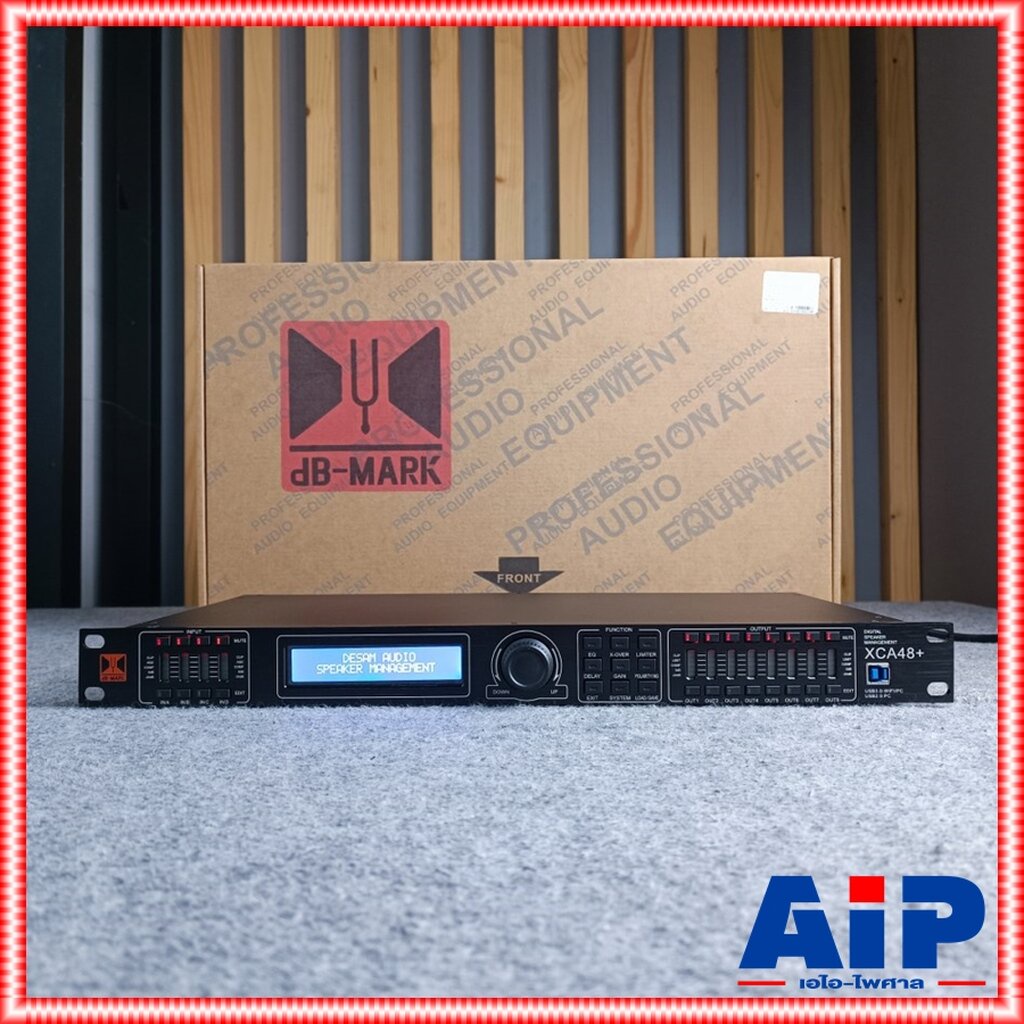

DB MARK XCA48+ Digital Speaker Controller ไดร์เวอร์แร็ค ครอสดิจิตอล เข้า 4 ออก 8 ฟังชั่นที่เหนือกว่ารุ่นอื่น XCA 48 +...

Specification : DB MARK XCA48+ DB MARK XCA48+ 4 balanced inputs and 8 balanced outputs on XLRs. DB MARK XCA48+ XCA + Series offers superior audio quality with THD: <0.002% and SNR >108.8dB DB MARK XCA48+ All channels can be configured using Parametric EQ, High/Low Shelf EQ, and 1st/2nd order All Pass filters. DB MARK XCA48+ Fully adjustable crossover filters on all output channels, with slopes from 12dB to 48dB per octave. DB MARK XCA48+ Linkwitz-Riley, Butterworth, or Bessel curves can be individually selected on the high-pass and low-pass. DB MARK XCA48+ Each input has 2 dynamic EQs, noise gate, and adjustable compressor. DB MARK XCA48+ Automatic Gain Control available on input channels. DB MARK XCA48+ Configurable compressor and peak limiter on every output channel. DB MARK XCA48+ Delay on all channels, adjustable in milliseconds, metres or feet. DB MARK XCA48+ Full matrix mixing, route any input to any output. DB MARK XCA48+ All input and output channels can be individually muted. DB MARK XCA48+ Channels can be linked for convenience to allow editing of two or more channels at a time DB MARK XCA48+ 32-bit digital signal processor with 24-bit 96KHz A/D and D/A converters. DB MARK XCA48+ USB 2.0/3.0, RS485 connections are provided for PC control of multiple devices. DB MARK XCA48+ Operation possible using the front panel controls, dedicated Windows app or the built-in web interface DB MARK XCA48+ 30 user-program presets can be stored into the device and recalled, or backed-up to PC via USB. DB MARK XCA48+ Password protection for partial or full lock of system settings. DB MARK XCA48+ LED indicators on all input and output channels for level, mute, compressor, limiter, and peak/clip. DB MARK XCA48+ 2x24 character dot-matrix blue back-lit LCD display. DB MARK XCA48+ Gross weight: 5.25kg DB MARK XCA48+ Shipping Dimensions: 562mm x 325mm x 98mm DB MARK XCA48+ Power 110V /220V AC 50/60Hz <25W
