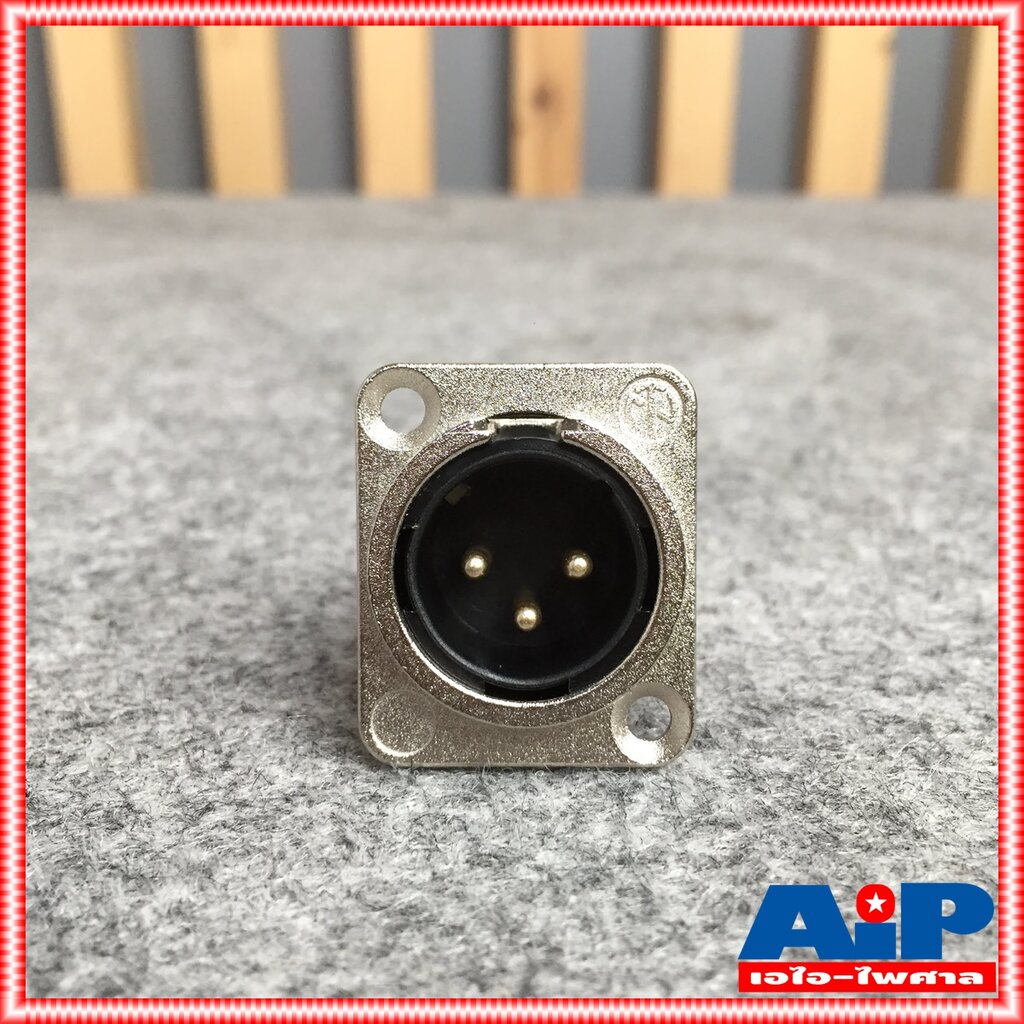

XLR ตัวผู้ติดแท่น NEUTRIK NC3MD-L-1 ของแท้ cannon ติดแท่น ตัวผู้ NC3MD L 1

NEUTRIK NC3MD-L-1 ของแท้ NC3MD-L-1 3 pole male receptacle, solder contacts, Nickel housing, silver contacts Universal D-size metal body XLR panel mount series. UL recognized component. Technical Information Product Title NC3MD-L-1 Connection Type XLR Gender male Electrical Capacitance between contacts ≤ 4 pF Contact resistance ≤ 5 mΩ Dielectric strength 1,5 kVdc Insulation resistance > 10 GΩ (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical Insertion force ≤ 20 N Withdrawal force ≤ 20 N Lifetime > 1000 mating cycles Wiresize Wiring Solder contacts Locking device Latch lock Mounting direction Front mounting Chassis shape D Material Contact plating 2 µm Ag over 2 µm Ni Contacts Brass (CuZn35Pb2) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Environmental Approvals UL Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C
