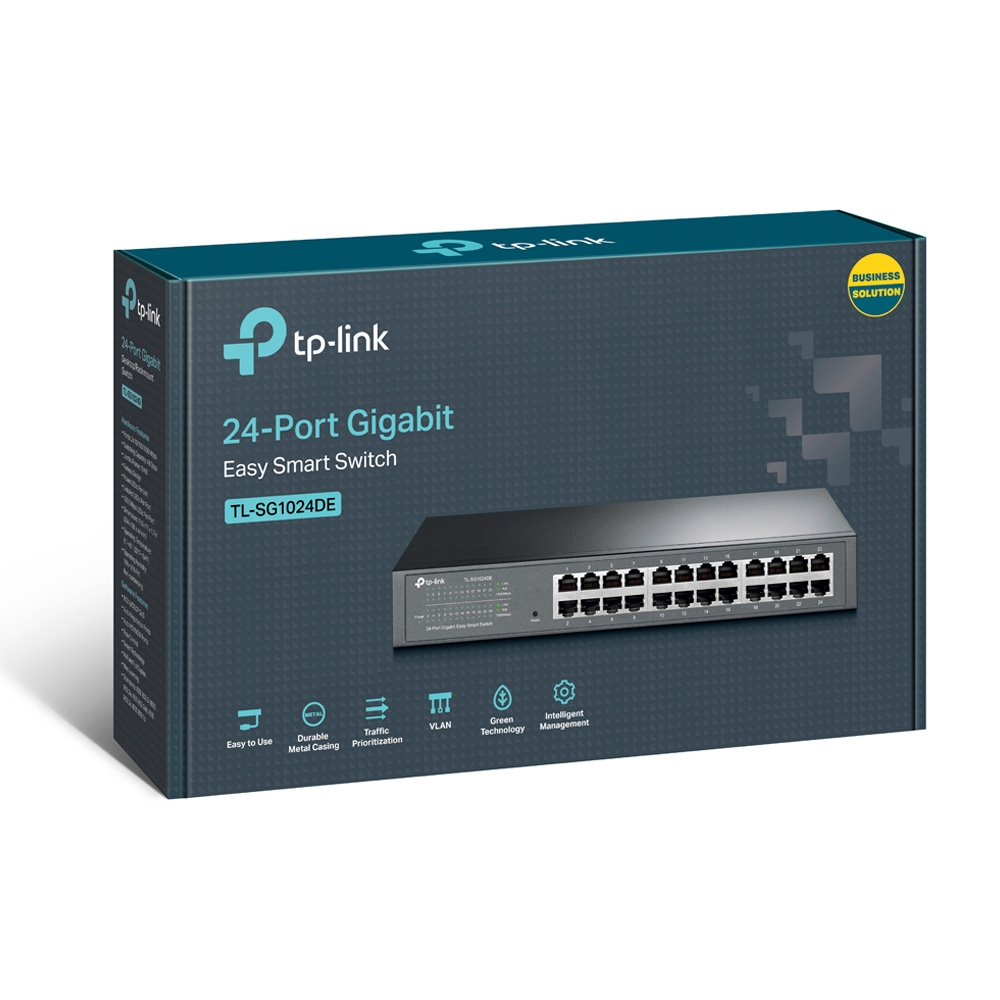

SWITCH (สวิตช์) TP-LINK TL-SG1024DE - 24 PORT GIGABIT EASY SMART SWITCH

Specification Detail HARDWARE FEATURES • Standards and Protocols : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface • 24 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity : Fanless Physical Security Lock : No Power Supply : 100-240VAC, 50/60Hz Power Consumption : Maximum : 14.86W (220V/50Hz) Dimensions ( W x D x H ) : 11.6*7.1*1.7 in. (294*180*44 mm) Mounting : Rack Mountable Max Power Consumption : 15.56W (220V/50Hz) Max Heat Dissipation : 50.06 BTU/h PERFORMANCE • Switching Capacity : 48Gbps • Packet Forwarding Rate : 35.7Mpps • MAC Address Table : 8K • Packet Buffer Memory : 512KB • Jumbo Frame : 9KB SOFTWARE FEATURES Quality of Service • Support Port-based/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control L2 Features • IGMP Snooping V1/V2/V3 • Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention VLAN : Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN Transmission Method : Store-And-Forward OTHERS • Certification : FCC, CE, RoHS • Package Contents : TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet • System Requirements : Microsoft® Windows® for running Utility • Environment : Operating Temperature: 0°C~40°C (32°F~104°F) • Storage Temperature : -40°C~70°C (-40°F~158°F) • Operating Humidity : 10%~90% non-condensing • Storage Humidity : 5%~90% non-condensing
