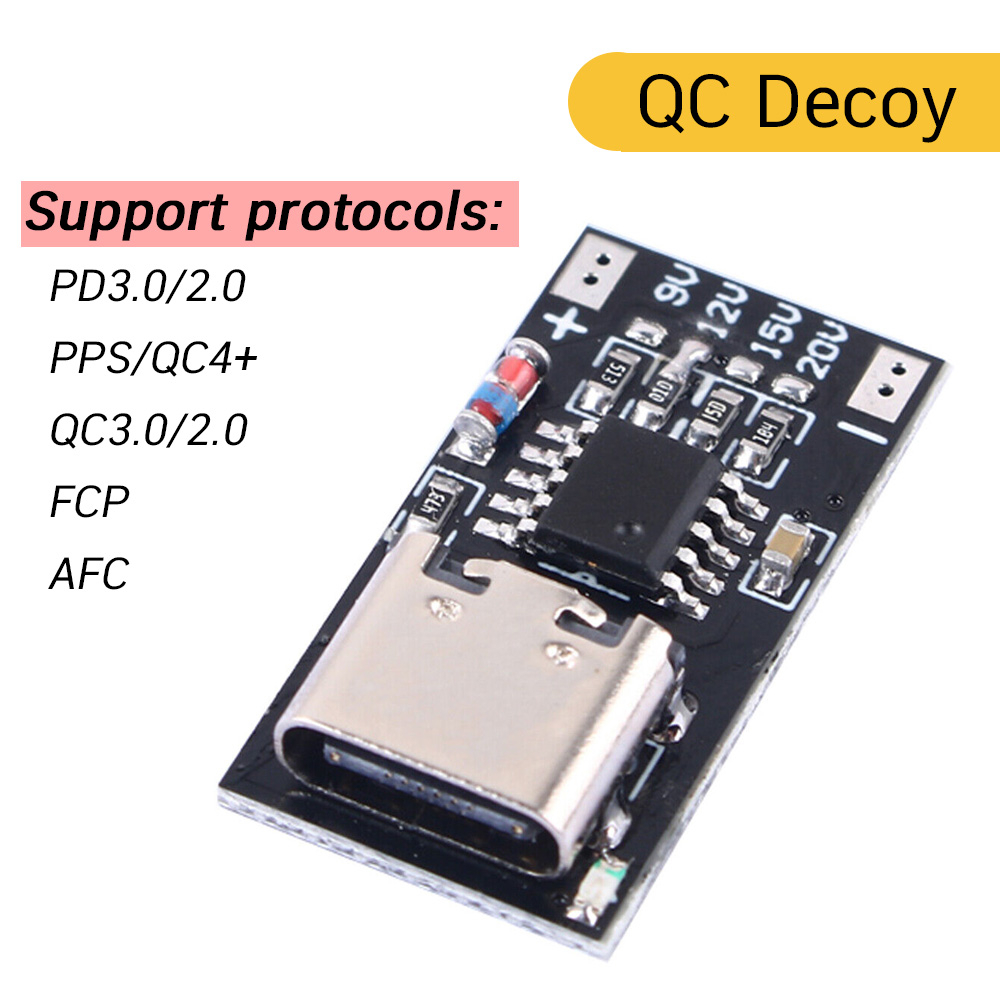

PD/QC Decoy Board Housing Fast Charge USB Boost Trigger Module Type-C 12V Quick Charge Board

PC/QC decoy board Features: 1: Support a variety of fast charging protocols 2: Wide range of applications 3: Small size 4: Maximum support 5A 5: TYPE-C port power supply I. Support a variety of fast charging protocols: PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC II. Function of this product: 1. Trick out the voltage of the fast charging charger/charging treasure and use it as a DC power supply. For example, let the fast charging power bank output 9 volts, 12 volts to power routers, light cats, etc.! 2. Turn some traditional DC-powered devices into TYPE-C port power supply. III. The size of the decoy board: 23*11.5*4mm IV. Note: 1. Mobile phone chargers/charging treasures must first support fast charging such as PD/QC in order to deceive the fast charging voltage. 2. Fix the four gears of 9/12/15/20 volts, what voltage is needed, just short the corresponding pads. 3. For example, if you set the decoy to 20 volts, but your charger is only up to 9 volts, it will automatically downshift to deceive the output to 9 volts. 4. The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.
