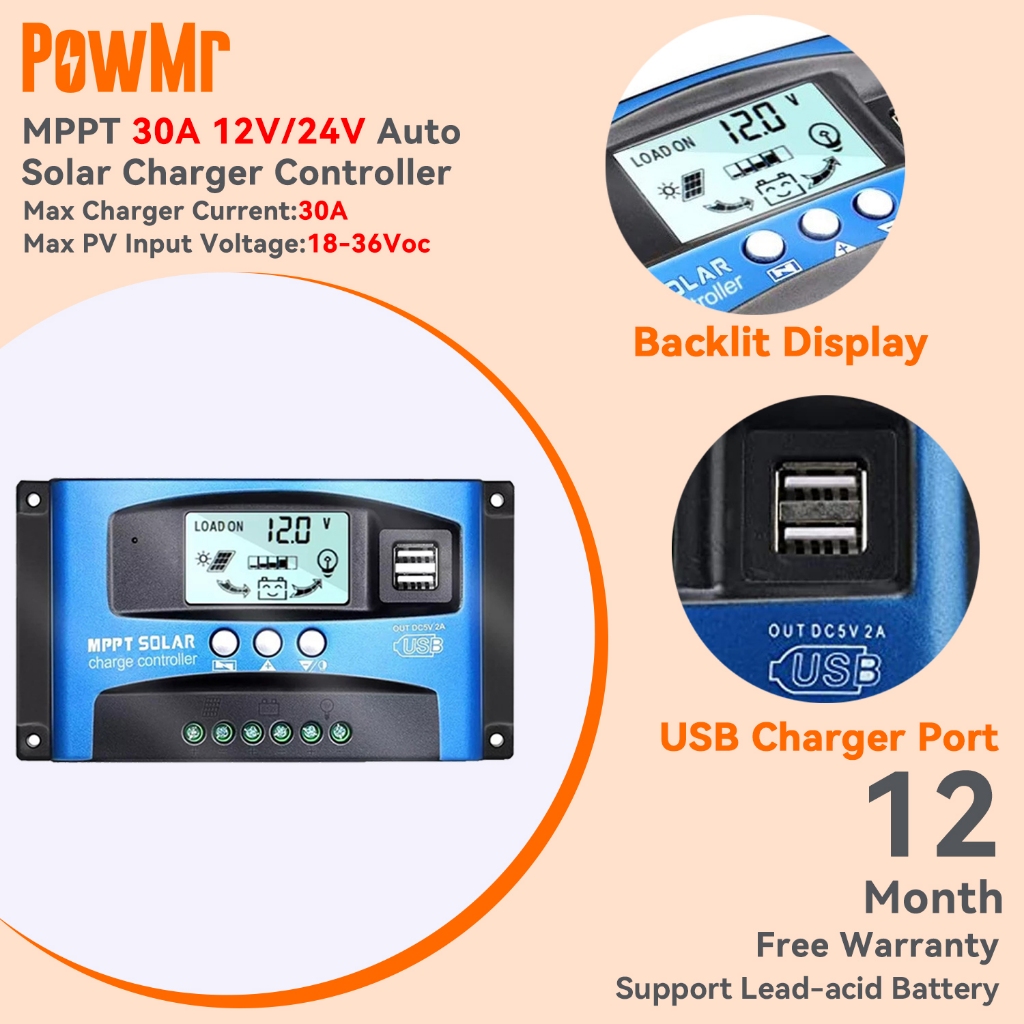

PowMr MPPT Solar Charge Controller 30A Solar Power Regulator 12V 24V Auto Dual USB LCD Display Load Discharger

PowMr MPPT Solar Charge Controller 30A Solar Power Regulator 12V 24V Auto Dual USB LCD Display Load Discharger Specifications: Model：BL-30A Type：MPPT Rated voltage: 12/24V Rated current: 30 Max. PV input power: 750W(12V) / 1200W(24V) System voltage: 12 / 24V adaptive Rated charging current: 30A Rated discharge current: 10A Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36V solar panel Full Voltage Value : Lithium Battery (12.2V) | B02 Colloidal Battery (14.2V) | B03 Open Cell (14.6V) Floating Charge Voltage : 13.7 V ( Default, Adjustable ) Discharge cut-off voltage::10.7 V ( default, adjustable ) Discharge recovery voltage: 12.6 V ( default, adjustable ) Standby current :10mA USB Output : 5V / 2A MAX Operating temperature:- 35 - 60 Package Includes： 1 x Solar Panels Battery Charge Controller 1 x User Manual(English) Advantages ◆All the Various Real-time data show on one display ,Convenient user to check. ◆The Solar Panel input voltage up to 96V, suitable for various specifications of solar panel. ◆The power supply uses ultra low power chip ,reducing static standby power consumption ,reduce energy loss. ◆USB 5V Output for phone charging. ◆Support Remote Display. Features: ◆ Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current, discharge current accurate real-time display, power generation at a glance. ◆Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection during charging, bidirectional focusing tracking. ◆Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide charge and discharge adjustable, as long as you understand the characteristics of the battery set its corresponding charging parameters, you can charge a battery. When the output is off, the time can be adjusted, which is more convenient. (on the market, there is no point adjustment) ◆Acomplete three-phase charge management, effectively protect the battery, the battery is more durable. ◆Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection protection,when the fault is eliminated, the controller automatically recovers, does not damage the device. ◆Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat. ◆R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection. Warranty Service ◆We provide one year free warranty for this product, if you have any questions, you can contact customer service at any time, looking forward to your purchase Note ◆Please read the product manual carefully before installation and operation. ◆If you have any questions, please consult through the chat channel.
