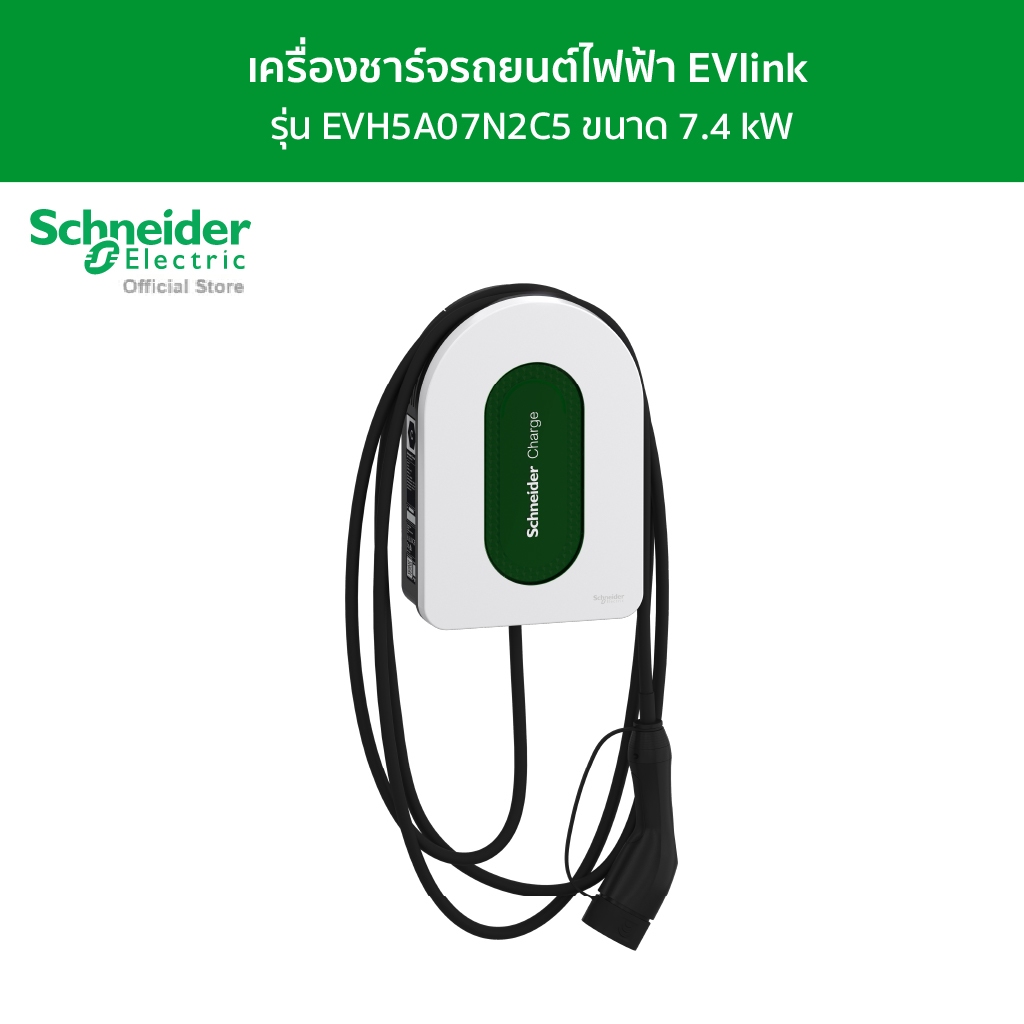

Schneider Electric เครื่องชาร์จรถยนต์ไฟฟ้า EVlink รุ่น EVH5A07N2C5 ขนาด 7.4 kW

Main Range : Schneider Charge Product name : Schneider Charge product or component type : Charging station Poles description : 1P + N mounting mode : Wall-mounted Max power : 7.4 kW 32 A Number of charge point : 1 Connection to the vehicle : Attached cable T2 bottom 5 m Complementary rated supply voltage : 230...240 V AC 50...60 Hz +/- 10 % Earthing system IT 230 TT TN-S number of inputs : 1 Input type : Dry contact for dynamic energy management Local signaling : Red, green and blue 1 LED, function: status indication Protection type : Earth-leakage protection Height : 352 mm Width : 244 mm Depth : 117 mm net weight : 4.5 kg Colour : White/green Standards EN 61851 IEC 61851-1 Communication network type Wi-Fi Wireless Ethernet Communication port protocol : OCPP 1.6, for connection to the Schneider Electric Wiser app Environment IP degree of protection : IP55 conforming to EN/IEC 60529 IK degree of protection : IK10 Ambient air temperature for operation : -30…50 °C ambient air temperature for storage : -40…85 °C Relative humidity : 5…95 % Operating altitude : 0...2000 m รับประกัน2ปี
