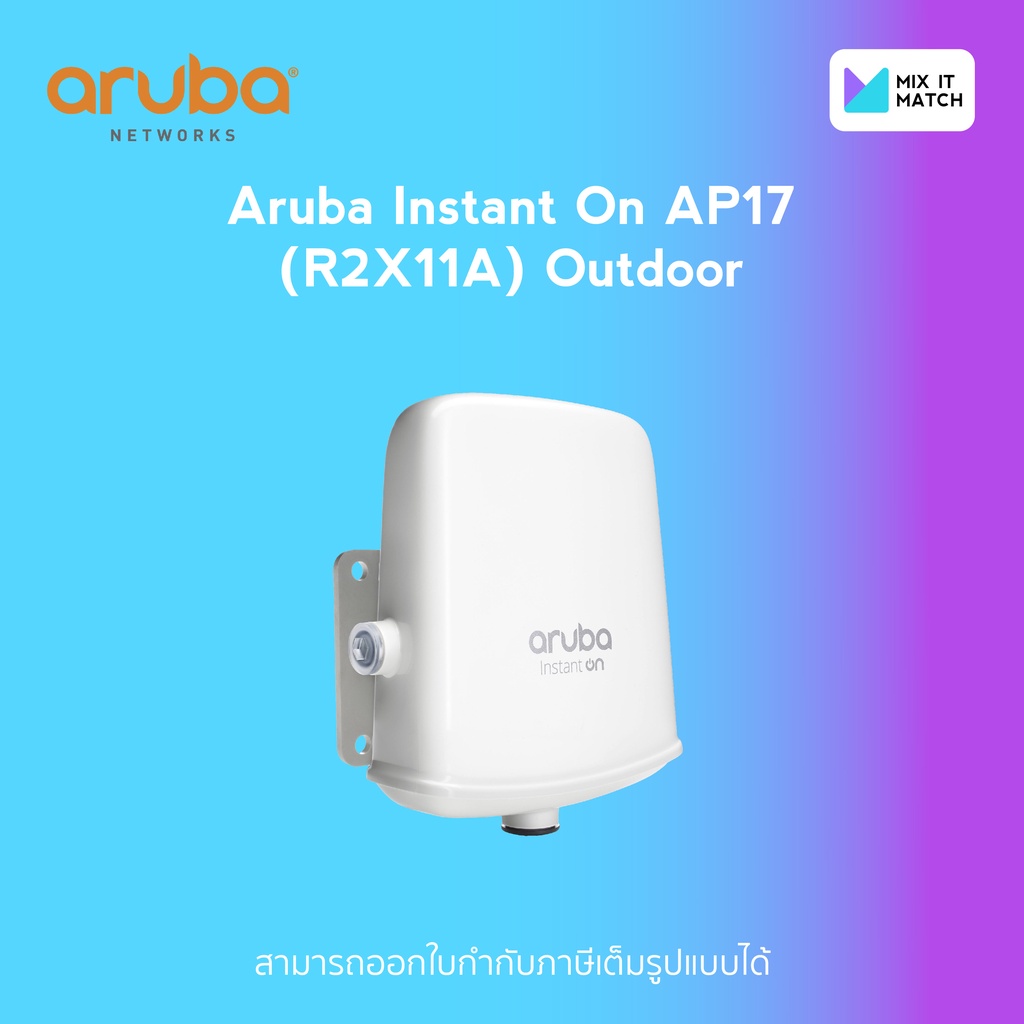

Aruba Instant On AP17 (R2X11A) (RW) Outdoor Access Point

TECHNICAL SPECIFICATIONS IN THE BOX • Aruba Instant On AP17 Access Point • Aruba Instant On AP17 Quick Start Guide • Cable gland • Wall mount bracket (solid surface) • M4X6 screw • M6X45 screw • Copper lug RADIOS • Dual Radio for simultaneous dual-band • operation • 5 GHz 802.11ac 2x2 MIMO for up to • 867 Mbps wireless data rate, with Multi • User MIMO support (Wi-Fi 5) • 2.4 GHz 802.11n 2x2 MIMO for up to • 300 Mbps wireless data rate (Wi-Fi 4) INTERFACES • 10/100/1000 BASE-T Ethernet (RJ45) • Bluetooth Low Energy (BLE) radio • LED status indicator • Reset button PHYSICAL SPECIFICATIONS • 156mm x 67mm x 187mm, • excluding mount accessories Weight: 650g POWER • Power over Ethernet (PoE): 802.3af power consumption 13.5W max ANTENNAS • Two dual-band omni- directional antennas (4.7 dBi gain at 2.4 GHz, 4.2 dBi gain at 5 GHz) MOUNTING • The access point ships with a mount bracket, can be mounted on the wall or a pole COMPLIANCE AND SAFETY • IEC 60950/62368 CB • UL2043 for air-handling space (plenum rating) ENVIRONMENTAL & RELIABILITY • IP55 Enclosure • Operating Temperature: -40° C to +50° C (-40° F to +122° F) • MTBF: 300khrs (34yrs) at +25° C INDUSTRY CERTIFICATIONS • WPA2, WPA3 • Wi-Fi Alliance certified (WFA) 802.11ac Wave 2 (Wi-Fi5) MANAGEMENT OPTIONS • Instant On mobile application (Android & iOS) • Cloud Portal: Portal.ArubaInstantOn.com WARRANTY & SUPPORT • Aruba Instant On 2-year* warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is for as long as you own the products.
