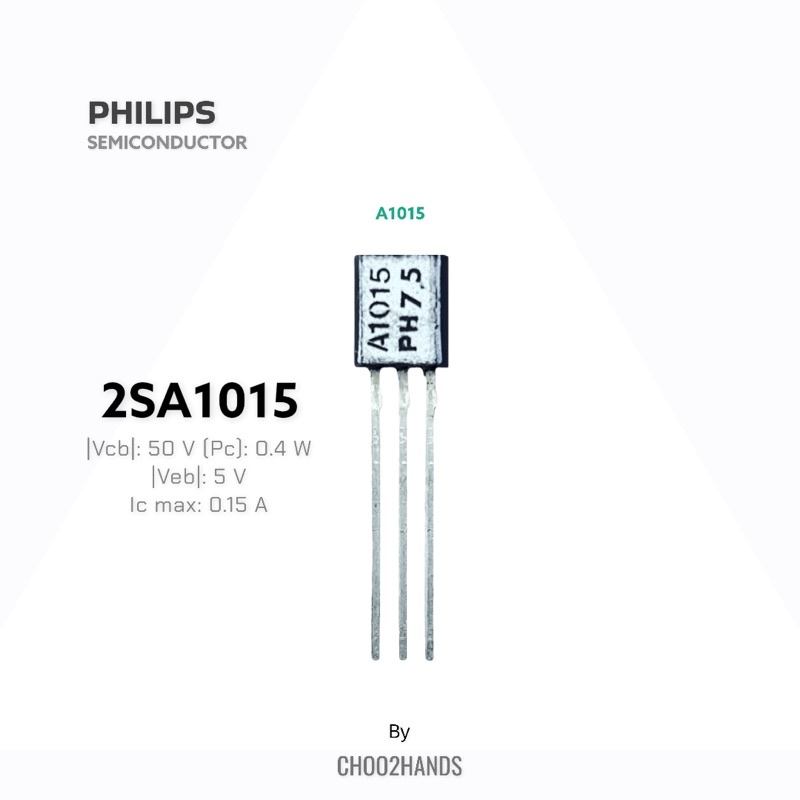

2SA1015 PNP SILICON TRANSISTOR PHILIPS Audio Frequency Amplifier TO92 *ส่งจากไทย

กดติดตามรับโค้ดส่วนลด " PHILIPS " 2SA1015 Audio Frequency General Purpose Amplifier Applications Driver Stage Amplifier Applications คุณสมบัติ * แรงดันไฟฟ้า Collector-Emitter: BVCEO=-50V * ตัวเก็บประจุปัจจุบันสูงถึง 150mA แพ็ค 5 - 10 ชิ้น • High voltage and high current : VCEO = -50 V (min), Ic = -150 mA (max) • Excellent hfe linearity : hFE (2) = 80 (typ.) at VCE = -6 V, Ic = -150 mA :hFE (IC =-0.1 mA)/hFE (IC =-2 mA) = 0.95 (typ.) • Low noise : NF = 1dB (typ.) (f = 1 kHz) • Complementary to 2SC1815. 1. EMITTER 2. COLLECTOR 3. BASE Designator: 2SA1015 Material of Transistor : Si Absolute Maximum Ratings (Ta = 25°C) Collector-base voltage VcBo : -50 V Collector-emitter voltage VCEO : 50 V Emitter-base voltage VEBO : 5 V Collector current Ic : 150 mA Base current : 50 mA Collector power dissipation : 400mW / 0.4W Transition Frequency (ft) : 80 MHz Junction temperature : 125 °C Storage temperature range : -55 - 125 °C TO92 ส่งจากไทย
