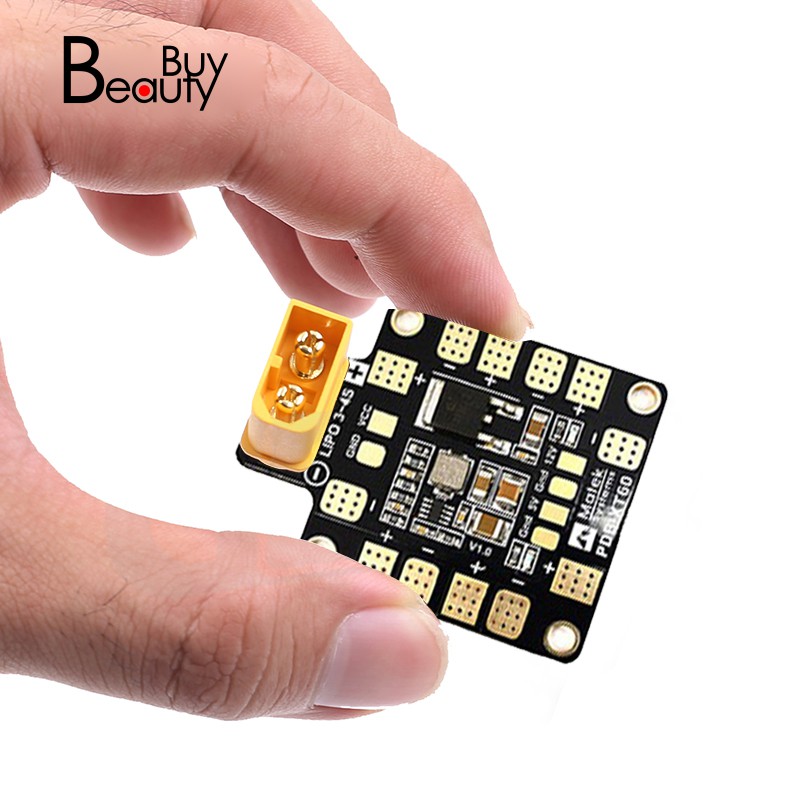

pdb บอร์ดกระจายพลังงาน bec 5v 2a 12v 0 . 5 a พร้อม xt 60 plug diy สําหรับโดรนบังคับ

Explanation: Material: circuit board Color as shown Board size: 5.2 cm* 3.6cm *0.3cm Board weight: 7.5g (includes 11g) 2oz copper, 4-layers & 1.6mm PCB Built-in XT60 Socket Light and durable for intensive usage Quick & Easy Installation Total 6 pairs ESC solder tabs are fit for H or X type frame 5V & 12V Output LED indicators & Short circuit tolerant General: Input voltage range (3S-4S LiPo operation): 9-18V DC Regulated outputs: 5V and 12V outputs ESC outputs: Continuous current: 25A*4 or 15A*6 Peak current (10 seconds/minute): 30A*4 or 20A*6 BEC 5V output: Designed for: RC Receivers, Flight controllers, OSD, and Servos BEC Mode: Linear Voltage: 5.0 +/- 0.1VDC Continuous current: 2 Amps (Max.2.5A 10s/minute) Output Ripple: 40mV (VIn=16V, VOut=5V@2A load) Short-circuit tolerant: 5 seconds/minute BEC 12V output: Designed for: Video TX or FPV camera with linear regulator BEC Mode: Linear Suggested battery: 4S LiPo (13~18V DC) Voltage: 12.0 +/- 0.3VDC Continuous current: 500mA (Max.0.8A 5s/minute) Short-circuit tolerant: 2 seconds/minute Package Contents: 1 * PDB Board 1 * XT60 Connector 1.The PDB-XT60 has been engineered to provide the highest performance and reliability in a 36*52mm & 4 layers PCB. 2.It distributes power from a LiPo pack to 6 ESCs, as well as providing synchronised & regulated DC 5V outputs & linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc. 3.The PDB-XT60 offers a Authentic Amass XT60 plug to connect the LiPo pack conveniently. 4.4-layer PCB Board, high current power and BEC stratification, avoid ground disturbance BEC power current; 5.This board makes the wiring nice, with the bonus of having the XT60 option. Stacked right on top of the CC3D with plenty of room.
