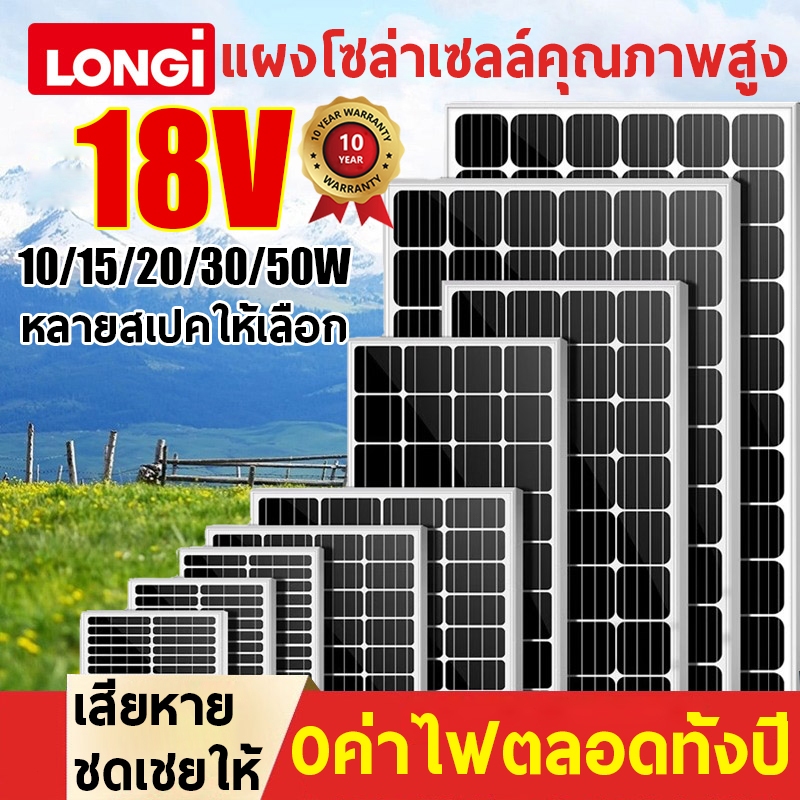

แผงโซล่าเซลล์ 18v10w15w20w30w50w solar cell panel โซลาร์เซลล์ แผงพลังงานแสงอาทิตย์ กันน้ำและกันฟ้าผ่ Monocrystalline

1.) Specification:￠18v10W -Model: SZ-Solar module-18V-10W -Type: single crystal -Maximum power output (Pm): 10w -Maximum operating voltage (Vmp): 18V -Maximum power current (Imp): 0.55A -Open circuit voltage (Voc): 23.4V -Short circuit current (Isc): 0.61A -Maximum system voltage: 1000V -Size: 235 mm x 350 mm 2.) Specification:￠18v15W -Model: SZ-Solar module-18V-15W -Type: single crystal -Maximum power output (Pm): 15w -Maximum operating voltage (Vmp): 18V -Maximum power current (Imp): 0.83A -Open circuit voltage (Voc): 23.4V -Short circuit current (Isc): 0.91A -Maximum system voltage: 1000V -Size: 290 mm x 350 mm 3.) Specification:￠18v20W -Model: SZ-Solar module-18V-20W -Type: single crystal -Maximum power output (Pm): 20w -Maximum operating voltage (Vmp): 18V -Maximum power current (Imp): 1.1A -Open circuit voltage (Voc): 23.4V -Short circuit current (Isc): 1.2A -Maximum system voltage: 1000V -Size: 400 mm x 350 mm 4.) Specification:￠18v30W ●Model: Sz-Solar-Module-18V-30W ●Type: single crystal ●Maximum power output (Pm): 30w ●Maximum working voltage (Vmp): 18v ●Maximum power current (Imp): 1.66A ●Open circuit voltage (Voc): 23.4V ●Short circuit current (Isc): 1.83A ●Maximum system voltage: 1000V ●Size: 530 mm x 350 mm 5.) Specification:￠18v50W ●Model: Sz-Solar-Module-18V-50W ●Type: single crystal ●Maximum power output (Pm): 50w ●Maximum working voltage (Vmp): 18v ●Maximum power current (Imp): 2.77A ●Open circuit voltage (Voc): 23.4V ●Short circuit current (Isc): 3A ●Maximum system voltage: 1000V ●Size: 500 mm x 580 mm
