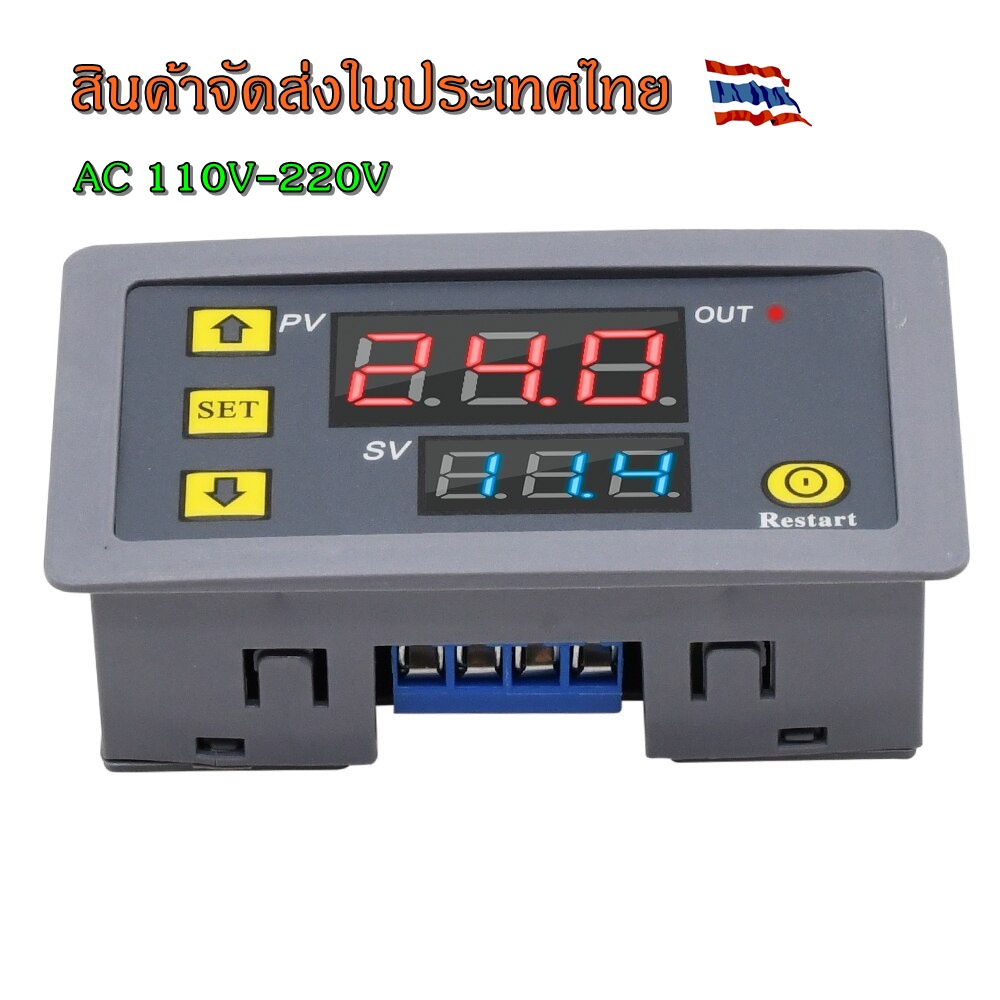

AC110V-220V Timer Relay สวิตช์รีเลย์ตั้งเวลา เปิด/ปิด อัตโนมัติ

AC110V-220V Timer Relay สวิตช์รีเลย์ตั้งเวลา เปิด/ปิด อัตโนมัติ โดยการตั้งเวลาตั้งแต่ 0-999 วินาที 0-999 นาที 0-999 ชม. Specifications: ช่วงตั้งเวลา: 0-999 วินาที 0-999 นาที 0-999 ชั่วโมง แรงดันใช้งาน AC 110V-220V Relay: 20A Working current: 10A (max) กำลังงานสูงสุด : 500W (max) Size: 79 * 26 * 43mm Hole size: 72 * 40mm Instructions:Please pay attention, for your first use, you need to wait 6s after your setting data, the module will save the date you set after 6s. Short press SET button: If you start time setting mode, Nixie tube will flash, you can adjust T1 and T2 time with + button and - button, please wait 5 seconds after setting date, module will save the date you set after 5. second Press and hold the SET button: If you start the parameter setting mode There are two group parameters for your choice: P0 and P1. You can change P0 or P1 by pressing SET under parameter P0 and P1. You can set timing mode by + button and - button. P0--0: timing mode: 0 --- 999 seconds P0--1: timing mode: 0 --- 999 minutes P0--2: Timer mode: 0 - 999 hrs. P1--0: The relay will connect after you delay T1 time. P1--1: Relay will disconnect after you delay T1 time. P1--2: The relay will connect after you delay T1 first time, then relay will disconnect after you delay T2 finish. P1--3: Relay will disconnect after you delay T1 first time, then relay will connect after you delay T2 finish. P1--4: Relay will connect after you delay T1 first, then relay will disconnect after you delay T2 which is circuit. P1--5: Relay will disconnect after you first delay T1, then relay will connect, after you delay T2, it will loop. Example: A customer needs 10 seconds to start up and 20 seconds off. The settings are as follows: T1 set time 10, T2 set time 20 P0 - 0 (T1 interval is seconds) P1--5 (timer operation mode) Package included: 1 x Digital Display Time Relay
