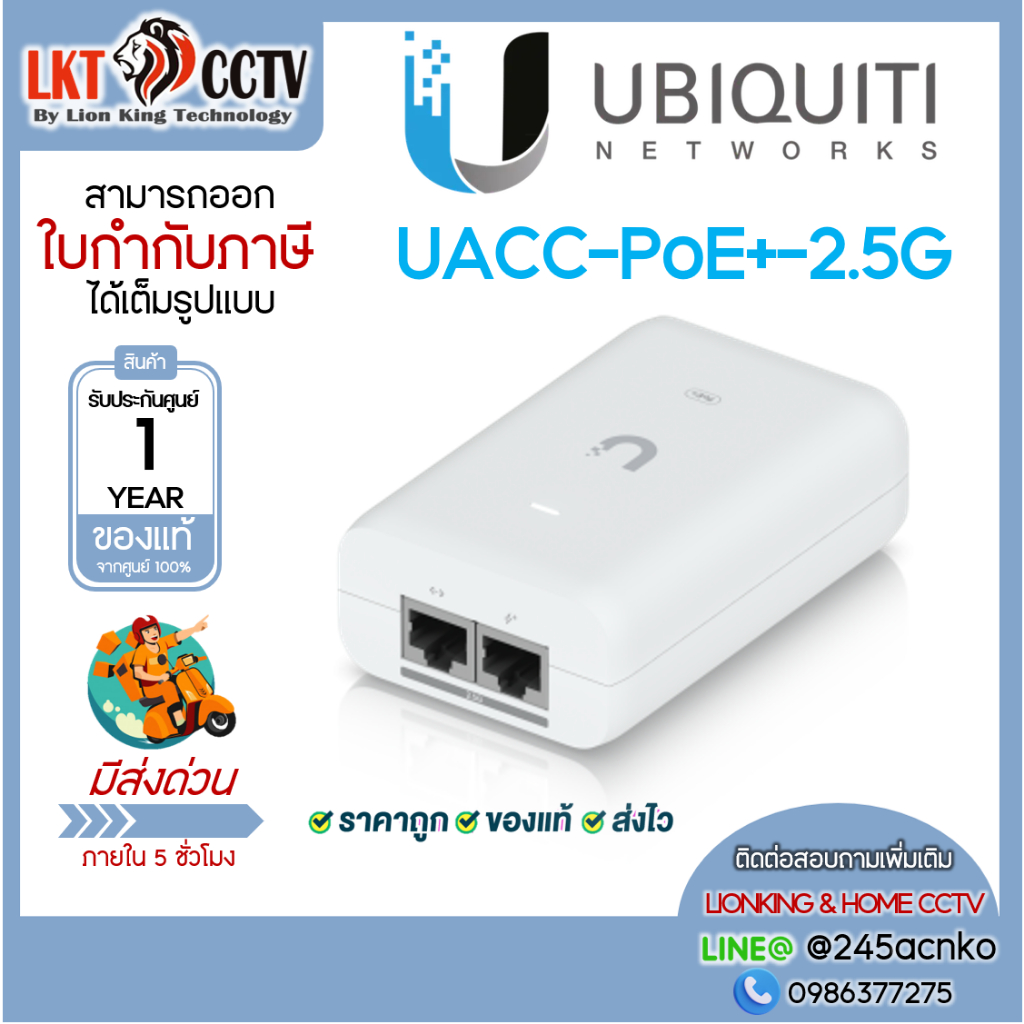

Ubiquiti UniFi 2.5G PoE+ Adapter (30W) รุ่น UACC-PoE+-2.5G

PoE+ up to 30W IEEE802.3at Support U7-Lite U7-ProU7-Outdoor U7-Pro-Max U7-Pro-WallU7-Pro-OutdoorU6-Enterprise- and other PoE+ devices มีไฟ LED สำหรับการตรวจสอบสถานะ อุปกรณ์ PoE Injector แบบ 2.5 Gigabit UACC-PoE+-2.5G 2.5G PoE+ Adapter (30W) Compatibility: U7-Lite, U7-Pro-Max, U7-Outdoor, U7-Pro-Wall, U7-IW, U7-Pro Overview Dimensions 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") Weight 156 g (5.5 oz) Output Voltage 48V DC @ 0.65A Rated Voltage 100—240V AC @ 50/60Hz Gigabit LAN Port ✓ 2-pair Powering Pins 4, 5 (+) and 7, 8 (-) Clamping Protection 11V Data, 60V power Data In / PoE RJ45 Shielded Socket Input Current 0.75A Max. Inrush Current <150A peak @ 230V AC Efficiency >87% Switching Frequency 65 kHz Max. Output Ripple 1% Max. Line Regulation ≤ 1% Load Regulation ≤ 3% Max. Surge Discharge 1500A (8/20 μs) power Peak Pulse Current 36A (10/1000 μs) data Response Time <1 ns Shunt Capacitance <5 pF data Surge Protection Difference and common mode Ambient Storage Temperature -30 to 70°C (-22 to 158° F) Ambient Operating Temperature 0 to 40° C (32 to 104° F) Ambient Operating Humidity 10 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
