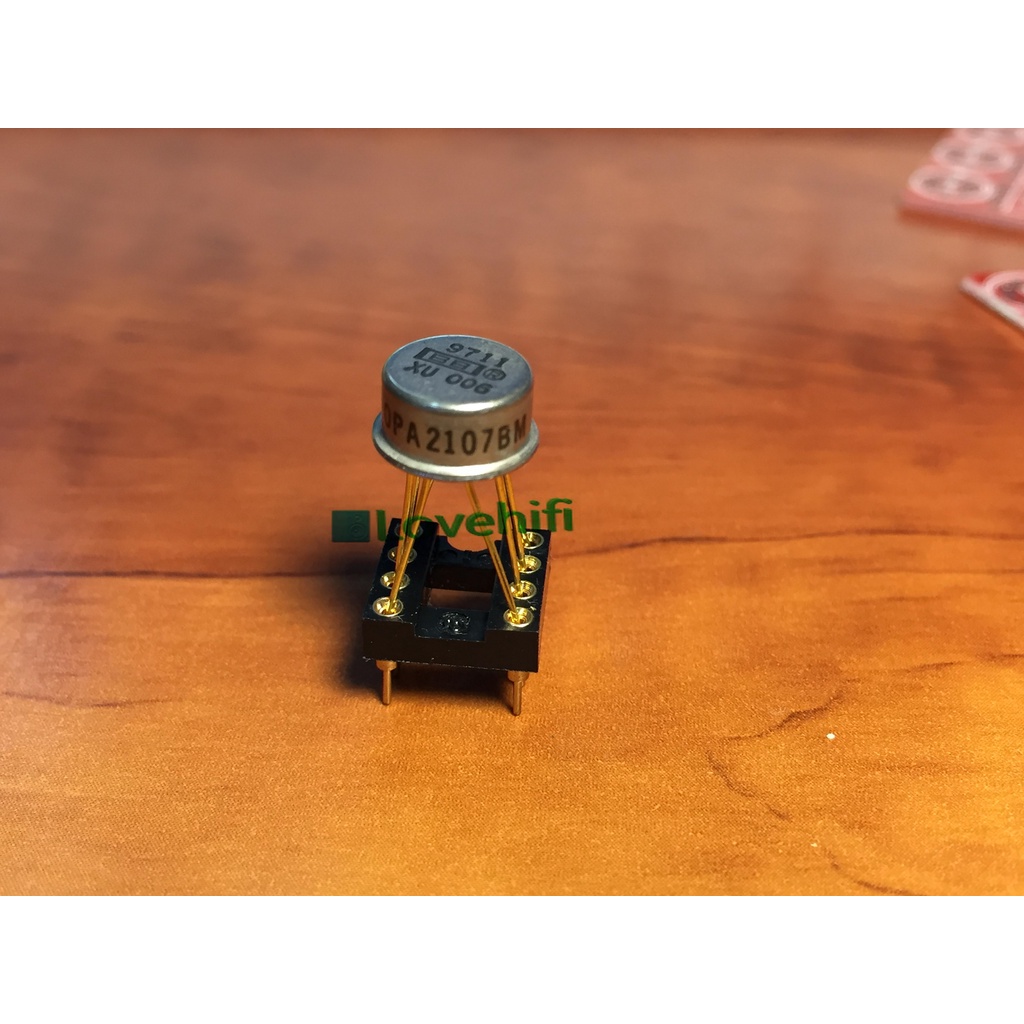

Opamp OPA2107BM Dual Opamp

Opamp OPA2107BM Dual Opamp ของใหม่ไม่ตัดขา ขาชุบทอง แนวเสียง กลางอิ่มมีมวล เบสลงลึกกระชับ สูงใส พริ้ว ราคาต่อ 1 ตัว FEATURES ● Very Low Noise: 8nV/√Hz at 10kHz ● Low VOS: 1mV max ● Low Drift: 10µV/°C max ● Low IB: 10pA max ● Fast Settling Time: 2µs to 0.01% ● Unity-Gain Stable Precision Dual Difet ® Operational Amplifier OPA2107 DESCRIPTION The OPA2107 dual operational amplifier provides precision Difet performance with the cost and space savings of a dual op amp. It is useful in a wide range of precision and low-noise analog circuitry and can be used to upgrade the performance of designs currently using BIFET® type amplifiers. The OPA2107 is fabricated on a proprietary dielectrically isolated (Difet ) process. This holds input bias currents to very low levels without sacrificing other important parameters, such as input offset voltage, drift and noise. Lasertrimmed input circuitry yields excellent dc performance. Superior dynamic performance is achieved, yet quiescent current is held to under 2.5mA per amplifier. The OPA2107 is unity-gain stable. ● Data Acquisition ● DAC Output Amplifiers ● Optoelectronics ● High-Impedance Sensor Amps ● High-Performance Audio Circuitry ● Medical Equipment, CT Scanners
