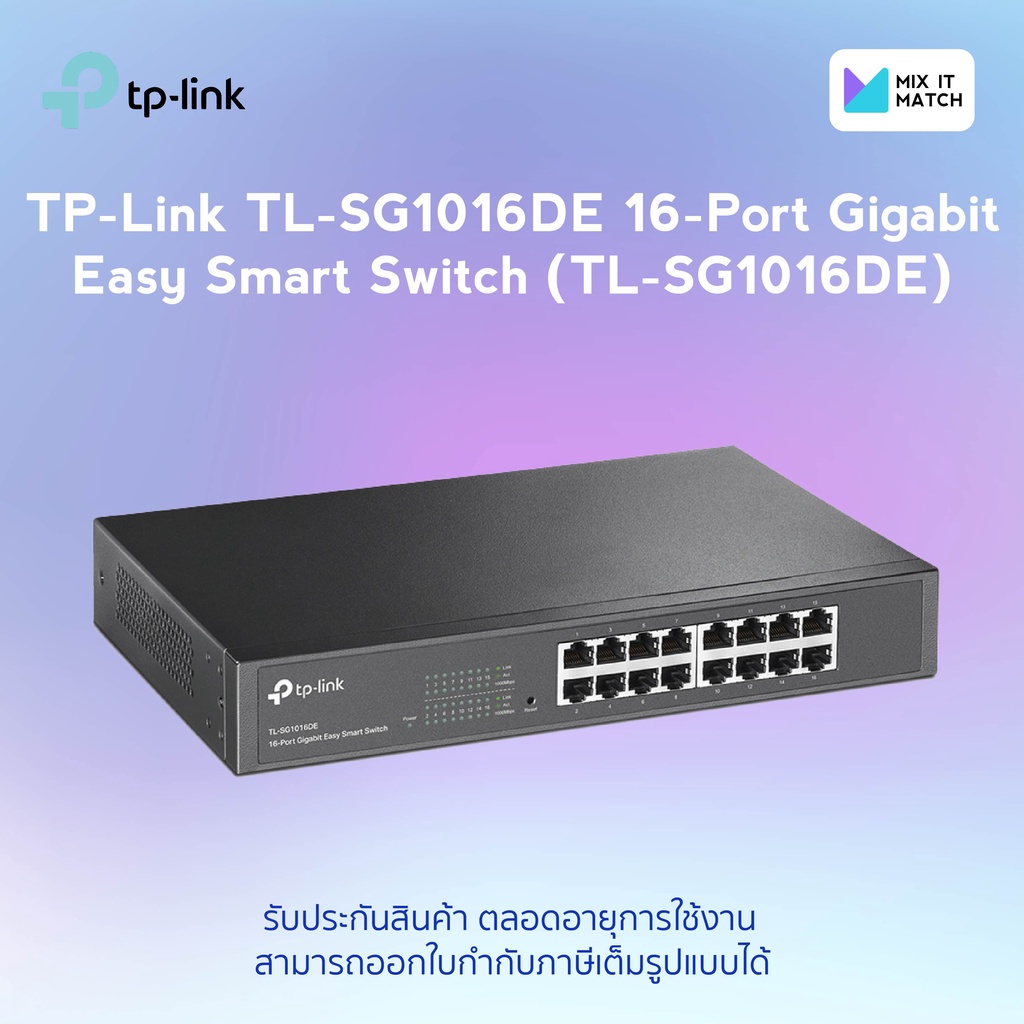

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch (TL-SG1016DE)

HARDWARE FEATURES Standards and Protocols • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface • 16 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity • Fanless Physical Security Lock • No Power Supply • 100-240VAC, 50/60Hz Dimensions ( W x D x H ) • 11.6*7.1*1.7 in. (294*180*44 mm) Mounting • Rack Mountable Max Power Consumption • 10.22W (220V/50Hz) Max Heat Dissipation • 34.52 BTU/h PERFORMANCE Switching Capacity • 32Gbps Packet Forwarding Rate • 23.8Mpps MAC Address Table • 8K Packet Buffer Memory • 4.1Mbit Jumbo Frame • 10KB SOFTWARE FEATURES Quality of Service • Support Port-based/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control L2 Features • IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention VLAN • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Transmission Method • Store-And-Forward OTHERS Certification • FCC, CE, RoHS Package Contents • TL-SG1016DE • Power Cord • Installation Guide • Resource CD • Rackmount Kit • System Requirements • Microsoft® Windows® for running Utility Environment • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
