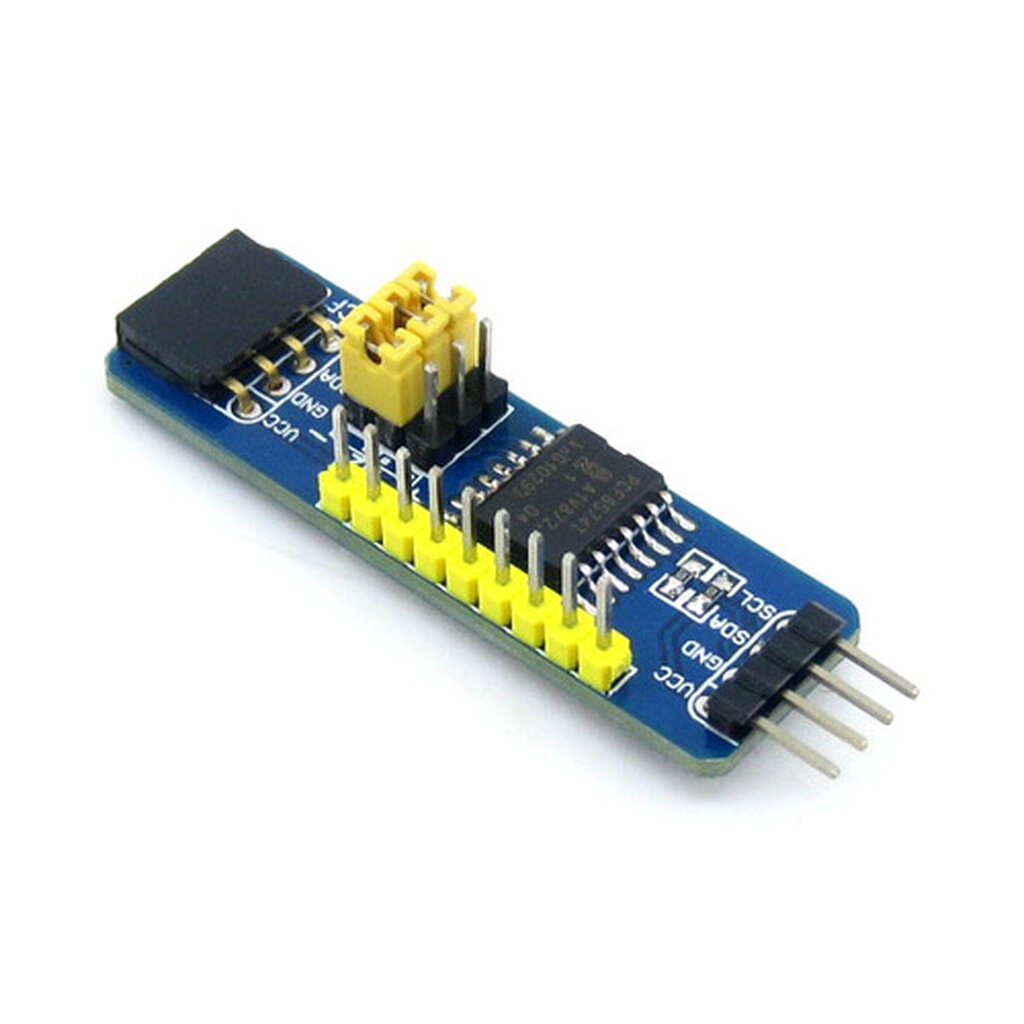

PCF8574 I2C to 8-Bit Digital IO Port Extension Module โมดูลขยายพอร์ด IO Arduino ผ่าน I2C This module (HCMODU0120) is a breakout board for the PCF8574 8-bit input/output (I/O) expander IC. Using this module you can expand the available digital I/O pins of your microcontroller via its serial I2C interface. The device features an 8-bit quasi-bidirectional I/O port (P0P7), including latched outputs with high current drive capability for directly driving LEDs. Each quasi-bidirectional I/O can be used as an input or output without the use of a data-direction control signal. 3 On-board jumpers allow selection of up to 8x I2C addresses meaning that up to 8 modules (64 I/O pins) can be connected to same I2C interface. The module also features convenient input and output headers at each end so that additional modules can simply be daisy-chained without the need for additional wires etc. คุณสมบัติสินค้า PCF8574 I2C to 8-Bit Digital IO Port Extension Module โมดูลขยายพอร์ด IO Arduino ผ่าน I2C - Product code: HCMODU0120 - 2.5V to 6V VCC operation - Low Standby-Current Consumption of 10 A Max - I2C to 8-bit Parallel-Port Expander - Open-Drain Interrupt Output - Compatible With Most Microcontrollers - Latched Outputs With High-Current Drive Capability for Directly Driving LEDs - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II Pinout: - VCC: 3.3V or 5V power supply - GND: Power ground - SDA: I2C Data - SCL: I2C Clock ดาวห์โหลด Library PCF8574 I2C to 8-Bit Digital IO Port Extension Module
