CLEF : STREAMBRIDGE X /Piyanas Electric/ปิยะนัส อิเล็คทริคส์

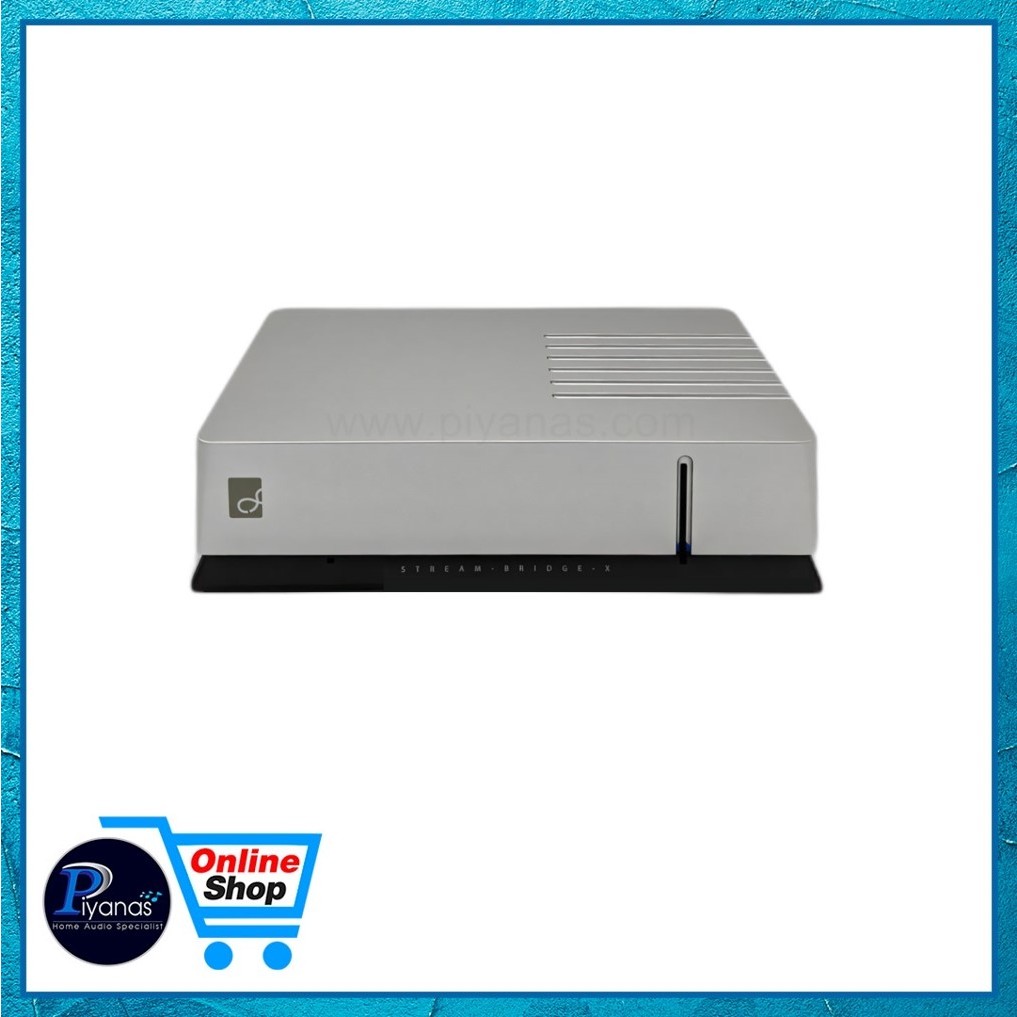

Clef Powerbridge Streambridge X Audio Network Switch Technology 1. Power Indicator Illuminate in BLUE when AC input is supplied to StreamBRIDGE-X. 2.AC Input Plug the supplied power cord into this connector and plug the other end into electrical outlet. This connector is the high qualityFurutech IEC connector which is optimized for contact resistance,EMI/RFI rejectionandgrounding. 3.Ground Mode Switch Select LAN Ports Ground or Ground Lift connection. Select the position that offers the best sound/video performance on your system. 4.Power Indicator LED Show status of network controlled board. 5.LAN Ports Plug LAN Cable from Router IN and OUT to your audio gear. All ports arethe same, you can plug into any port 1 to 8. Technical Specification ● Type: 8-port Gigabit Network Switch10/100/1000 Mbps. ● Clock: OCXO with Low Noise Power Supply. ● Clock Stability: + 10 ppb over -20ºC to + 70ºC ● Power Supply: Ultra Liner Power Supply. ● Power Consumption: 10 Watts. ● AC Requirements: 220-230V / 50Hz ● Dimension (w x h x d): 244 x 63 x 160 mm. ● Weight: 3.1Kgs,3.6Kgs with Packing
