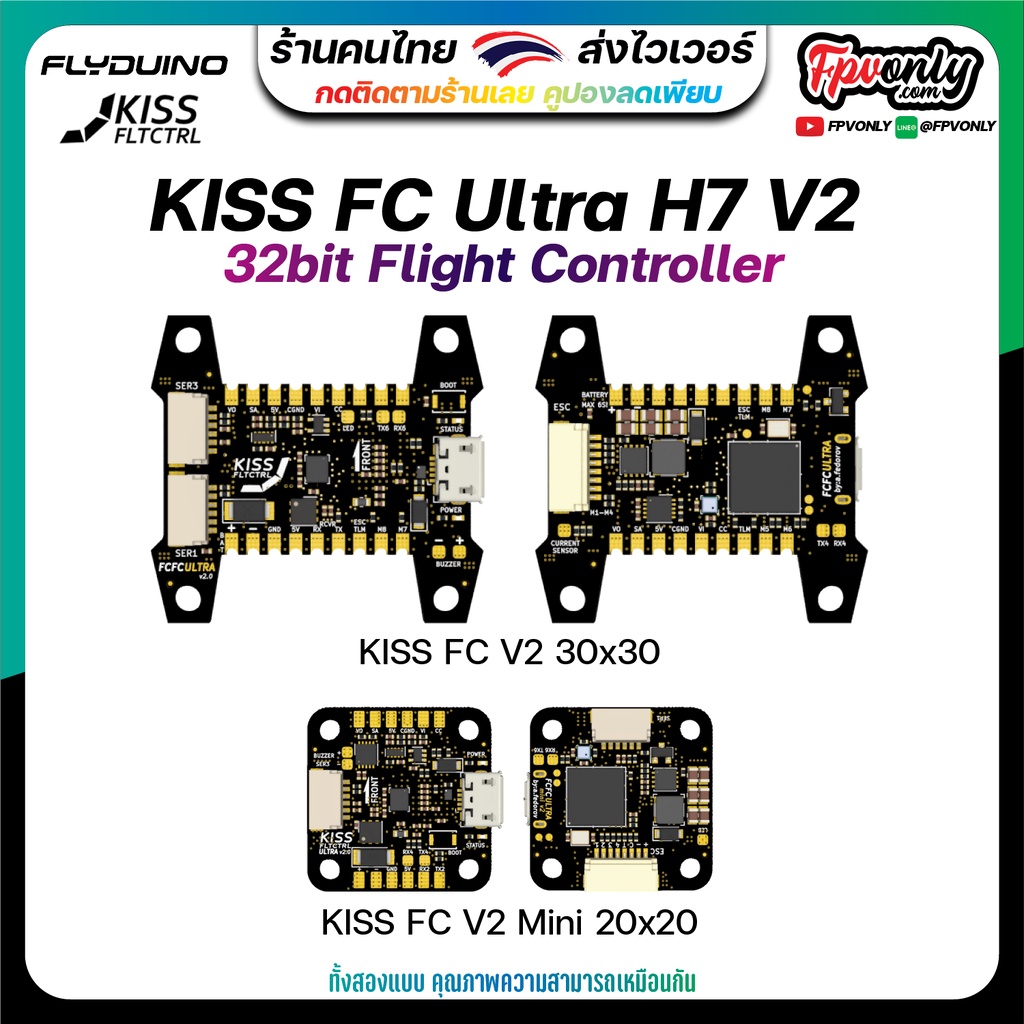

[FC & STACK 30x30] KISS FCFC Ultra H7 V2 flight Control FC 30x30

Description Hardware: - Iconic KISS H form factor 30.5x30.5mm mounting (With permission of Flyduino) - STM32H743 processor 480 MHz, 2MB FLASH, 1.28MB RAM - MPU6000 gyro, SPI - BMP388 barometer - 8 pin ESC connector, backward compatible with KISS (!!!not with FETTEC!!!) - Extra solder pads for motors 5-8 - 2 serial ports on 6 pin connectors (SER1 / SER3), KISS compatible Software improvements: - Firmware is based on LATEST version from PATREON - New STM32 H7 bootloader, VCP driver - One HEX to rule them all ?? - Smart config storage NEVER loose your configuration - Optimised hardware interface layer code - Optimised adaptive filter code (CPU load is about 12-14% fully loaded!!!) - Added BLHELI Passthrough - IRC Ghost support - TBS CSRFv3 support (ultra code) - Improved RTH with BARO support - KISS Weather Station (its fun) - NO soft serial ports anymore! - 7 serial ports exposed (dedicated serials for SA and RC telemetry) - Camera control (analog, real DAC) - UBX protocol GPS support - Battery capacity/alerts - DSHOT router (free routing between software and hardware channels) - Up to 8 motors support with DSHOT2400/1wire OSD features: - Integrated Graphical OSD - No OSD firmware update required - Configurable Black and White levels, transparency - FULL KISS configuration from OSD - ESC configuration - No serial port required, 50fps refresh rate - Battery cell voltage sensor - Crossfire tools - Hardware test tools (rc test, gps test, video test, motor test etc) GUI improvements: - Forked GUI code (With permission of Flyduino) - Design facelift, code cleanup. - Removed odd things like pentacopters, cars and other noice. - Web GUI without installation available at https://ultra.anuta.org/ - OSD Mirror https://youtu.be/aUqtCTAt8ik Abbreviations: KISS - Keep It Super Simple FCFC - Fedor Commander Flight Controller In the box: Kiss FCFC Ultra 8-8 cable 8-6 cable (legacy)
