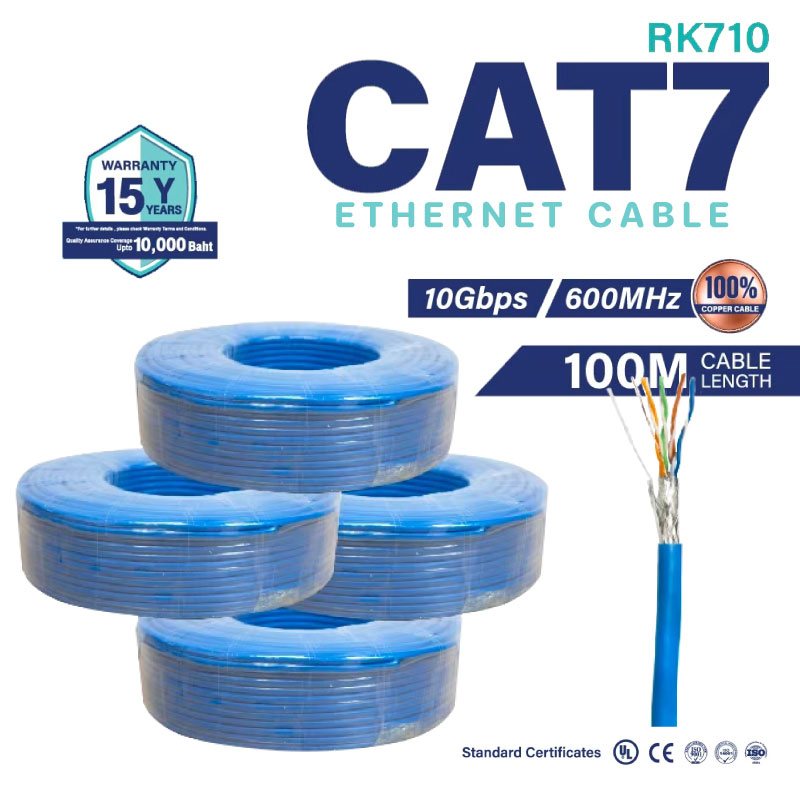

CAT7 Ethernet cable 10Gbps 600MHz 100เมตร CABLE สีฟ้า รุ่น RK710

CAT7 Ethernet cable 10Gbps 600MHz 100เมตร CABLE สีฟ้า รุ่น RK710 Standard ANSI/TIA-568-C ISO 11801 2nd IEC 61156-5 ROHS 2011/65EU Specification Inner Conductor Br 23AWG Insulation PE PET YES Drain Wire YES Shield AL Foil each pair Rip Cord Nylon Material Braiding 40% AI Wire Outer Sheath PVC (BLUE) Mechanical Property Insulation Tensile Strength : _>16MPa Elongation At Break Of Insulation :_>300% Aging Time And Temperature:100'C*168h Sheath Tensile Strength :_>10MPa Sheath Elongation At Break :_>125% Sheath Tensile Strength After Aging :_>8MPa Electrical Performance (20*C) Impedance: 1-250MHZ 100+15 (Ohms) DC Resistance 20*C: 7.8(Ohms/100m) Dielectric strength:DC 2500V 2S Pair-to-Ground CapacitanceUnbalance: 330(pF/100M) Sheath Tensile Strength: z10MPa Sheath Elongation At Break: z125% Sheath Tensile Strength After Aging: 28MPa Rated Temperature:75*C. Insulation Resistance: > 5000MQ*KM DC Resistance balance : 2.5%.
