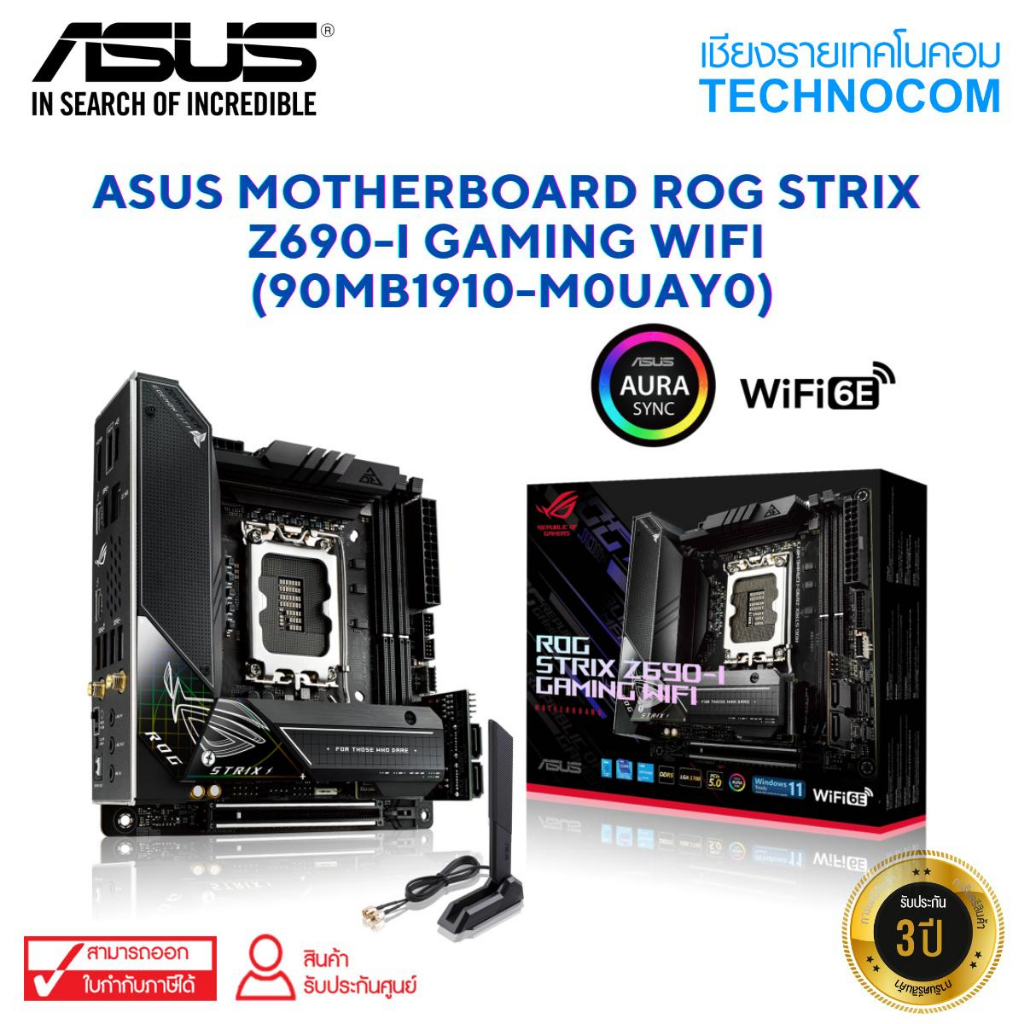

ASUS MOTHERBOARD(เมนบอร์ด) ROG STRIX Z690-I GAMING WIFI (90MB1910-M0UAY0)

CPUIntel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors ChipsetIntel® Z690 Chipset MemoryMemory Channels: 2DDR5 (Dual Channel) Max Memory Size: 64GB Graphics*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 8K@60Hz as specified in DisplayPort 1.4. ***Support 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Ethernet1 x Intel® 2.5Gb Ethernet ASUS LANGuard Wireless & BluetoothWi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USBRear USB: Total 9 ports Front USB: Total 5 ports Audio"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover Internal I/O Connectors Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) 2 x 4-pin Radiator Fan header(s) 2 x W_PUMP+ header(s) 1 x WB_SENSOR header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card/ PD 3.0 connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®, PD 3.0 up tp DC 5V/3A 60W fast charging technology) 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 6 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 2 x RSVD header 1 x V_Latch 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header Special FeaturesExtreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Dual BIOS Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W. ASUS HYDRANODE - 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P) * Visit ASUS Website for the latest compatibility list. Operating SystemWindows® 10 64-bit Windows® 11 64-bit Form FactorMini ITX 17cm x 17cm
