แผงโมดูล ควบคุมแบตเตอรี่ พลังงานแสงอาทิตย์

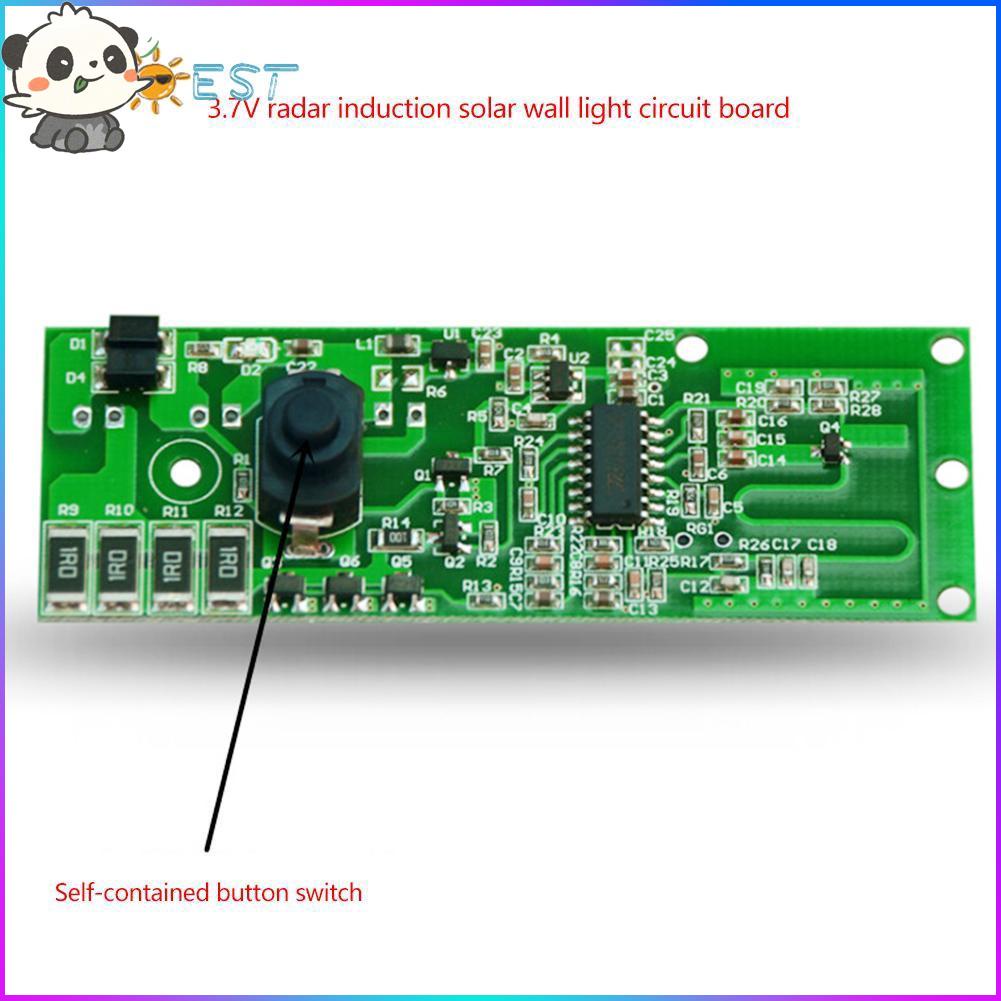

Specifications: Material: ABS Size: 74*26*10mm/2.91*1.02*0.39" Purpose:Controller for Solar Wall Lamp. Light mode: Automatically turn off the light during the day and turn on the light by human body induction at night. Induction mode: microwave radar induction Induction Distance: 6-10m Induction time: 15 seconds high brightness, normally-on at weak light Battery input: 3.2V/3.7V Output power: <10W Note: There is no overcharge and overdischarge protection. Batteries should be connected with their own protective plates. Notes for testing: 1. When testing the induction mode, there is no movement of objects within 12 meters, including the movement of hands and feet. Otherwise, it will be tested. 2. When multiple induction modules are together, they may interfere with each other, resulting in insensitive induction or false triggering. 3. The surface of the patch part is the launching surface. It can't stick adhesive and glue. It can't be covered by metal. 4. The distance between the positive side and the negative side of the inductor should not be less than 2cm from the metal. 5. Induction signals can penetrate glass, plastics, walls, etc. Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-3cm measuring deviation due to manual measurement. Included: 1 XCircuit Board
