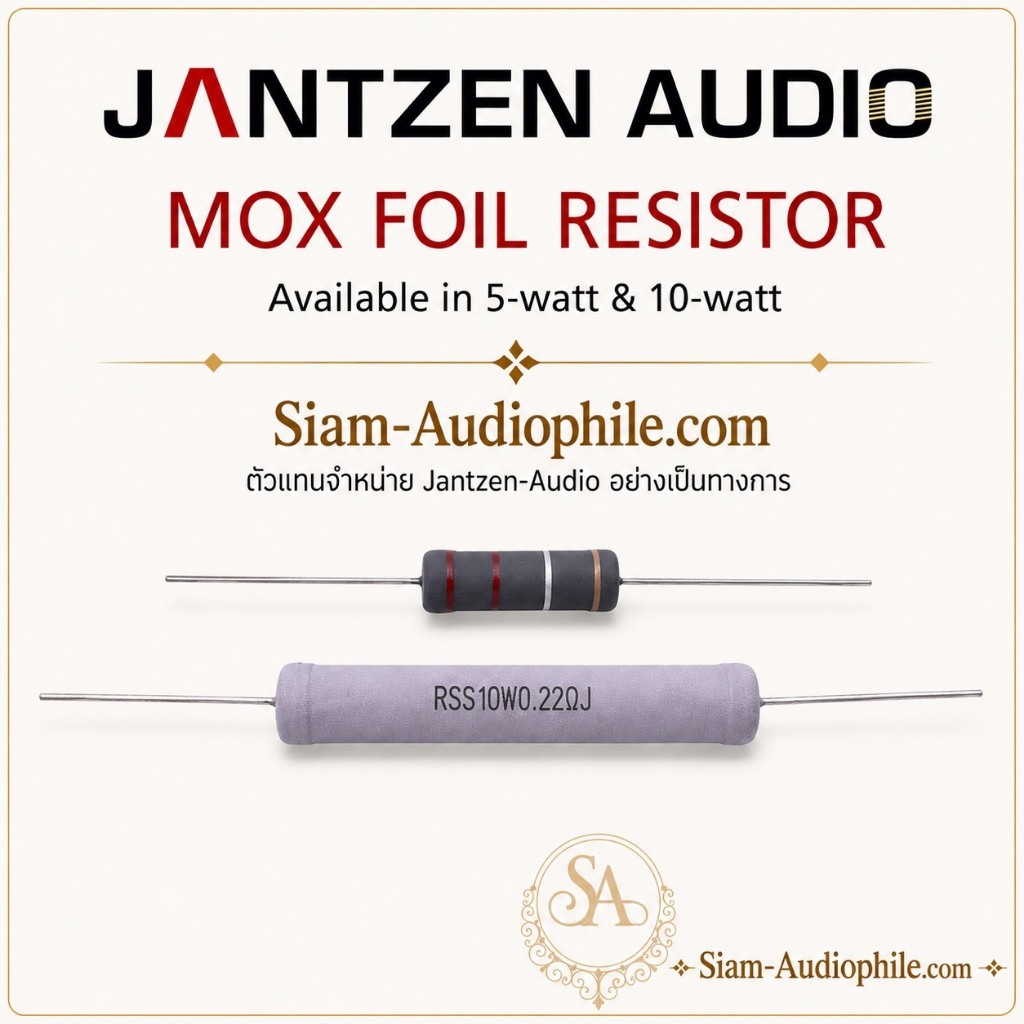

Jantzen Audio Resistor MOX (metal oxide film)

PRODUCT FEATURES The MOX resistors are high quality foil-based audio grade resistors. They feature a high temperature tolerance and are very resistant to shock. These resistors have always been a staple for professional audio manufacturers and DIY enthusiasts. The MOX resistors offer great performance, but at a very affordable price point. TECHNICAL DATA • Foil-based audio resistors • Conductor type and material: Foil (Metal Oxide) • Resistance tolerance: +/- 5% • MOX resistors are foil based and can therefore reach higher resistance values than wire wound resistors • Instant overload capacity • Very high heat dissipation with a small linear temperature coefficient • Low annual shift • Flame proof wrapping • Dimensions 5-watt resistors: Ø 8.5 mm/L 24 mm • Dimensions 10-watt resistors: Ø 8.5 mm/L 53 mm • Operating temperature range: -55℃～155 • Resistance temperature coefficient: • Temperature cycle: ตารางราคา Resistor MOX (metal oxide film) Mox RSS 10W 5% metalized 0.22 Ohms Mox RSS 10W 5% metalized 0.47 Ohms Mox RSS 10W 5% metalized 1.0 Ohms Mox RSS 10W 5% metalized 1.5 Ohms Mox RSS 10W 5% metalized 1,8 Ohms Mox RSS 10W 5% metalized 2.0 Ohms Mox RSS 10W 5% metalized 2,2 Ohms Mox RSS 10W 5% metalized 2.7 Ohms Mox RSS 10W 5% metalized 3,3 Ohms Mox RSS 10W 5% metalized 3,9 Ohms Mox RSS 10W 5% metalized 4,7 Ohms Mox RSS 10W 5% metalized 5,6 Ohms Mox RSS 10W 5% metalized 6.2 Ohms Mox RSS 10W 5% metalized 6,8 Ohms Mox RSS 10W 5% metalized 7.5 Ohms Mox RSS 10W 5% metalized 8,2 Ohms Mox RSS 10W 5% metalized 10 Ohms Mox RSS 10W 5% metalized 12 Ohms Mox RSS 10W 5% metalized 15 Ohms Mox RSS 10W 5% metalized 22 Ohms Mox RSS 10W 5% metalized 33 Ohms Mox RSS 10W 5% metalized 39 Ohms Mox RSS 10W 5% metalized 47 Ohms ****สำคัญมากโปรดอ่านค่ะ**** ****ราคาขายสินค้าต่อชิ้นนะค่ะ**** ##สามารถจับคู่ค่าให้ได้นะค่ะ มีค่าบริการค่ะ ##ตรวจสอบ รุ่น ค่า และขนาดก่อน กดสั่งซื้อนะค่ะ ##สินค้าไม่รับเปลี่ยนคืนทุกกรณี ยกเวันทางร้านส่งผิดค่ะ
