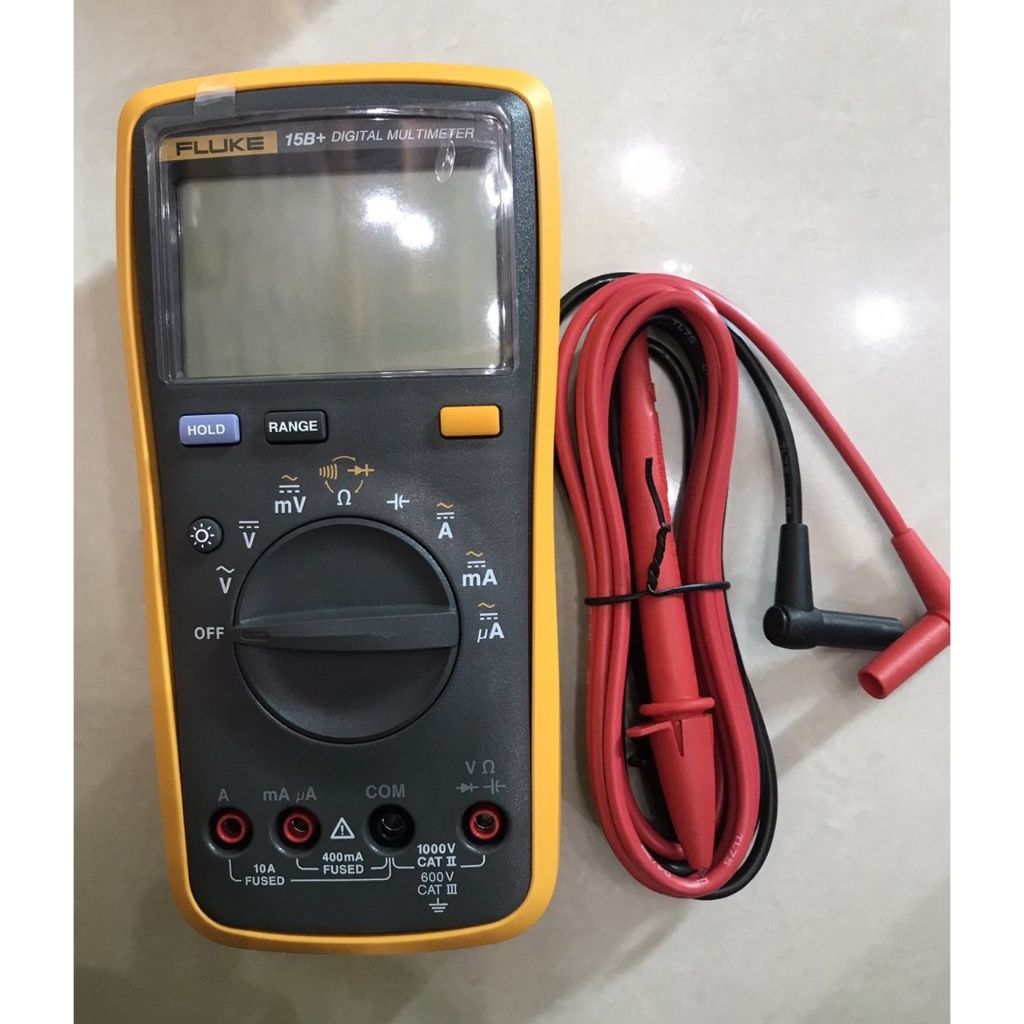

Fluke 15B+ มีสต็อกนะคะ

รายละเอียดสินค้า Specifications: Fluke 15B+ Digital Multimeter Accuracy Specifications Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0% to 75%. Accuracy specifications take the form of: ±(% of Reading + Number of Least Significant Digits). Function Range Resolution Accuracy AC volts (40 Hz to 500Hz)1 4.000 V 40.00 V 400.0 V 1000 V 0.001 V 0.01 V 0.1 V 1 V 1.0% + 3 DC volts 4.000 V 40.00 V 400.0 V 1000 V 0.001 V 0.01 V 0.1 V 1 V 0.5% + 3 AC millivolts 400.0 mV 0.1 mV 3.0% + 3 DC millivolts 400.0 mV 0.1 mV 1.0% + 10 Diode test2 2.000 V 0.001 V 10% Resistance (Ohms) 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ 0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ 0.5% + 3 0.5% + 2 0.5% + 2 0.5% + 2 0.5% + 2 1.5% + 3 Capacitance3 40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF 0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF 2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5 AC current μA (40 Hz to 400 Hz) 400.0 μA 4000 μA 0.1 μA 1 μA 1.5% + 3 AC current mA (40 Hz to 400 Hz) 40.00 mA 400.0 mA 0.01 mA 0.1 mA 1.5% + 3 AC current A (40 Hz to 400 Hz) 4.000 A 10.00 A 0.001 A 0.01 A 1.5% + 3 DC current μA 400.0 μA 4000 μA 0.1 μA 1 μA 1.5% + 3 DC current mA 40.00 mA 400.0 mA 0.01 mA 0.1 mA 1.5% + 3 DC current A 4.000 A 10.00 A 0.001 A 0.01 A 1.5% + 3 Backlight Yes 1All ac, Hz, and duty cycle are specified from 1% to 100% of range. Inputs below 1% of range are not specified. 2Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA. 3Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range). Function Overload protection Input impedance (Nominal) Common mode rejection ratio Normal mode rejection ratio AC volts 1000 V 1 >10 MΩ <100 pF >60 dB at dc, 50 Hz or 60 Hz - AC millivolts 400 mV >1MΩ, <100 pF >80 dB at 50 Hz or 60 Hz - DC volts 1000 V 1 >10 MΩ <100 pF >100 dB at dc, 50 Hz or 60 Hz >60 dB at 50 Hz or 60 Hz DC millivolts 400 mV >1MΩ, <100 pF >80 dB at 50 Hz or 60 Hz - 1 106 V Hz Max General specifications Maximum voltage between any terminal and earth ground 1000 V Display (LCD) 4000 counts, updates 3/sec Battery type 2 AA, NEDA 15A, IEC LR6 Battery life 500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.) Temperature Operating 0 °C to 40 °C Storage -30 °C to 60 °C Relative humidity Operating humidity Non-condensing (<10°C) ≤90% RH at 10 °C to 30 °C; ≤75% RH at 30 °C to 40 °C 40 MΩ range ≤80% RH at 10 °C to 30 °C; ≤70% RH at 30 °C to 40 °C Altitude Operating 2000 m Storage 12,000 m Temperature coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) Fuse protection for current inputs 440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only. Size (H x W x L) 183 x 91 x 49.5 mm Weight 455 g IP rating IP 40 Safety IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2 Electromagnetic environment IEC 61326-1: Portable Electromagnetic compatibility Applies to use in Korea only Class A equipment (industrial broadcasting & communication equipment)1 1 This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes. รับประกัน 3 เดือน
